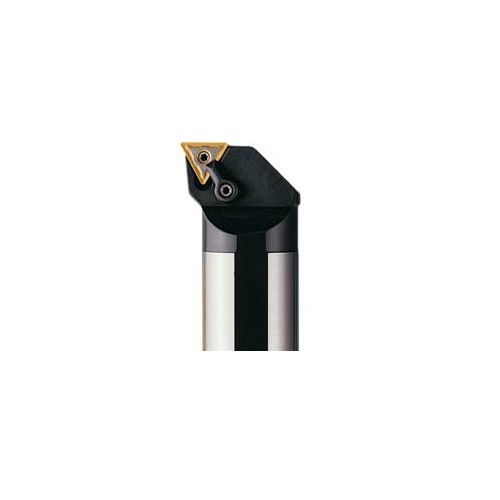

Seco Internal Turning Toolholder Solid Steel Multiple Lock 300 x 32 x 16mm Right 90° T Insert Shape S32T-MTFNR16

Description

Seco Internal Turning Toolholder Solid Steel Multiple Lock 300 x 32 x 16mm Right 90° T Insert Shape S32T-MTFNR16

Turning Internal Toolholder (Solid Steel - Multiple Lock - F Type - T Insert Shape - 16mm Cutting Edge Length)

Solid Steel.
T insert shape.
0° ISCA (Insert Side Clearance Angles).
16mm Cutting Edge Length.

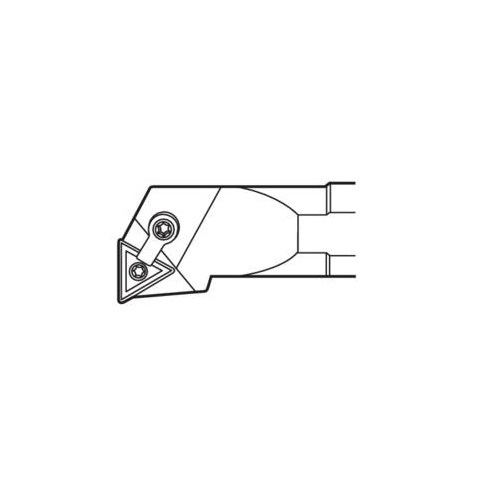

Multiple lock assembly, (Pin and clamp lock) / (M-Type tool holders).
F tool type, offset shank with 0° (90°) end cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114372

Brand Seco

Model Number 75002272

Barcode Number 2272750000106

Net Weight (kg) 1.802

Designation S32T-MTFNR16

Type Turning Toolholder

Insert Clamping System (ICS) Multiple Lock

Shank Type Cylindrical

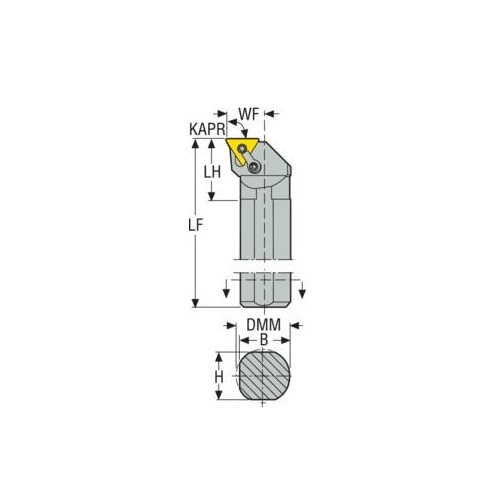

Functional Width (WF) mm 22

Cutting Edge Length (mm) 16

Inclination Angle (LAMS) -14.0 deg

Tool Cutting Edge Angle Code (KAPRC) F

Cutting Diameter Internal Minimum (DCINN) 40

Tool Type F Type

Functional Length (LF) 300mm

Shank Diameter (DMM) 32mm

Rake Angle Orthogonal (gamo) -5.0 deg

Tool Holder Type Solid Steel

Height Of Tool Holder Shank (H) mm 30

Head Length (LH) mm 50

Tool Cutting Edge Angle (KAPR) 90.0 deg

Connection Text Workpiece Side (ctws) TN1604

Shank Width (b) mm 31

Version (internal/external/both) Internal

Direction Of Cutting (hand) Right

Connection Text Machine Side (CTMS) 32
