Description

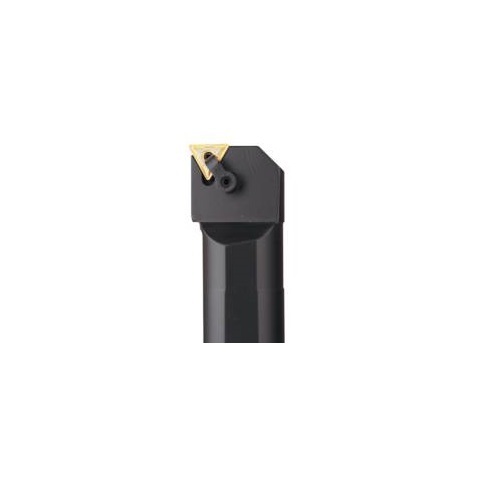

Seco Internal Turning Toolholder Solid Steel Multiple Lock 356 x 31.75 x 38.86mm Right 93° T Insert Shape S20-MTUNR-3

Turning Internal Toolholder (Solid Steel - Multiple Lock - U Type - T Insert Shape)

  • Solid Steel.
  • T insert shape.
  • 0° ISCA (Insert Side Clearance Angles).

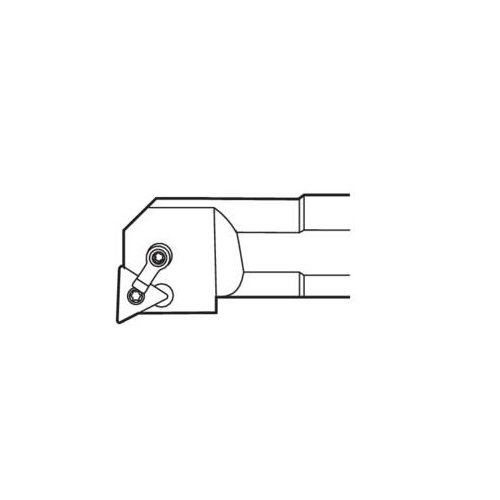

  • Multiple lock assembly, (Pin and clamp lock) / (M-Type tool holders).
  • U tool type, offset shank with negative 3° (93°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114730
  • Brand Seco
  • Model Number 00043220
  • Barcode Number 43220000000106
  • Net Weight (kg) 4.69
  • Designation S20-MTUNR-3
  • Type Turning Toolholder
  • Tool Holder Type Solid Steel
  • Shank Type Cylindrical
  • Insert Size Inscribed Circle Diameter (mm) 3

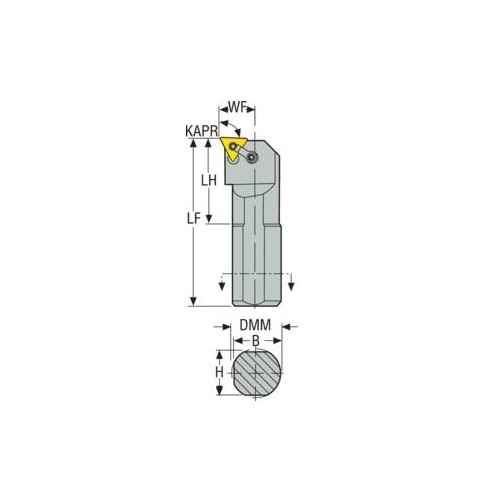

  • Functional Width (WF) mm 19.4
  • Inclination Angle (LAMS) -11.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) U
  • Cutting Diameter Internal Minimum (DCINN) 38.86
  • Functional Length (LF) 356
  • Shank Diameter (DMM) 31.75
  • Insert Clamping System (ICS) Multiple Lock
  • Rake Angle Orthogonal (gamo) -5.0 deg
  • Height Of Tool Holder Shank (H) mm 29
  • Head Length (LH) mm 53.9
  • Tool Cutting Edge Angle (KAPR) 93.0 deg
  • Connection Text Workpiece Side (ctws) TN1603
  • Shank Width (b) mm 30.6
  • Version (internal/external/both) Internal
  • Direction Of Cutting (hand) Right
  • Connection Text Machine Side (CTMS) 31.75
  • Rake Angle Axial (gamp) -11.0 deg
SKU: A0114730

Seco Internal Turning Toolholder Solid Steel Multiple Lock 356 x 31.75 x 38.86mm Right 93° T Insert Shape S20-MTUNR-3

Turning Internal Toolholder (Solid Steel - Multiple Lock

$435.60
RRP $544.50
SAVE $108.90 (20%)
