Specifications

AIMS SKU A0114434
Brand Seco
Model Number 00015218
Barcode Number 15218000000100
Net Weight (kg) 1.04
Designation A16-PDQNR-3

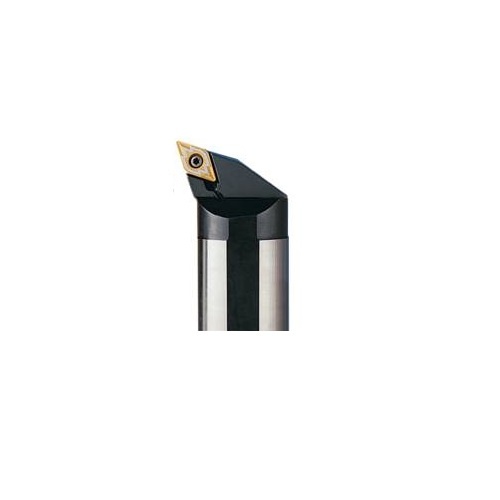

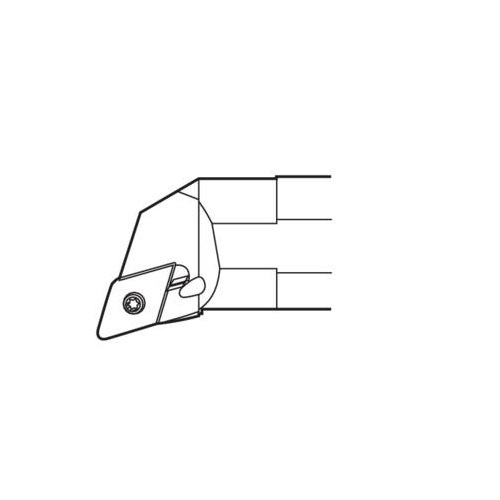

Type Turning Toolholder
Shank Diameter (DMM) 25.4mm
Rake Angle Orthogonal (gamo) -5.0 deg
Insert Size Inscribed Circle Diameter (mm) 3
Cutting Depth Radial Max (CDRX) mm 2.5
Cutting Depth Max (CDX) mm 2.5
Functional Width (WF) mm 19.1
Inclination Angle (LAMS) -12.0 deg
Tool Cutting Edge Angle Code (KAPRC) Q
Cutting Diameter Internal Minimum (DCINN) 33
Tool Type Q Type
Functional Length (LF) 304.8mm
Rake Angle Axial (gamp) -12.0 deg
Insert Clamping System (ICS) Pin Lock
Tool Holder Type Steel
Height Of Tool Holder Shank (H) mm 22
Head Length (LH) mm 48.8
Tool Cutting Edge Angle (KAPR) 107.5 deg
Connection Text Workpiece Side (ctws) DN1104
Shank Width (b) mm 23.7
Version (internal/external/both) Internal
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 25.4
