Description

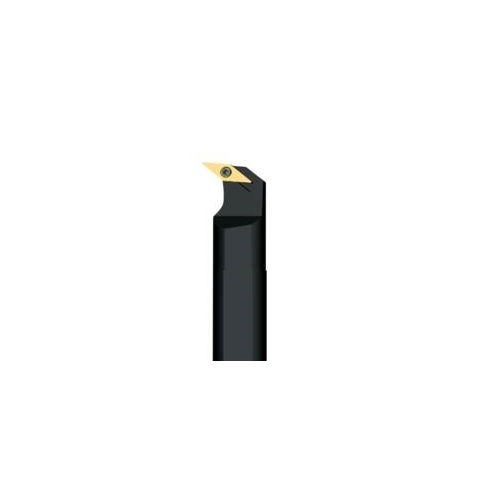

Seco Internal Turning Toolholder Steel Pin Lock 304.8 x 25.4 x 30.48mm Right 95° V Insert Shape A16-PVLNR-2.5

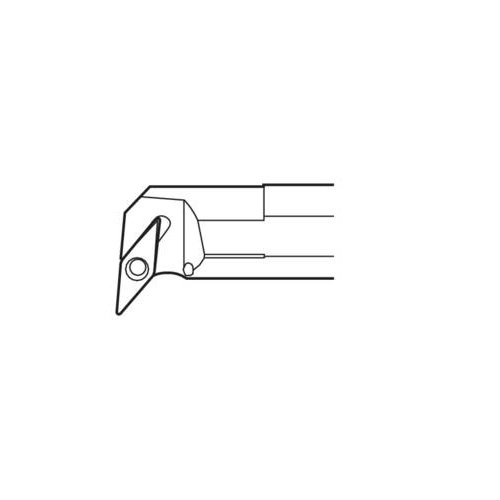

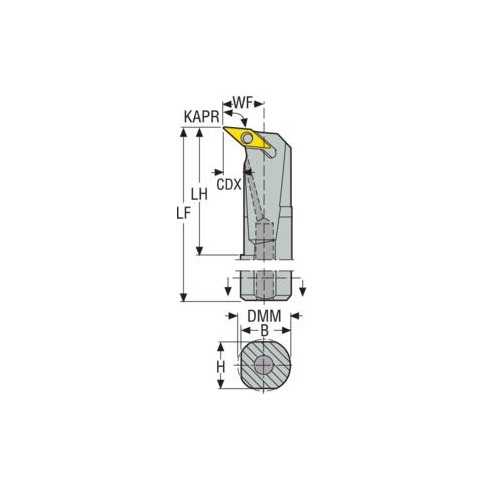

Turning Internal Toolholder (Steel - Pin Lock - L Type - V Insert Shape)

Pin lock assembly, (NL/PL toolholders).
V insert shape.
0° ISCA (Insert Side Clearance Angles).
Screw lock.
L tool type, offset shank with negative 5° (95°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.
