Specifications

AIMS SKU A0114600
Brand Seco
Model Number 75066213
Barcode Number 66213750000107
Net Weight (kg) 0.114
Designation A12N-SDUCL07

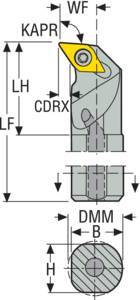

Functional Length (LF) 160
Cutting Depth Radial Max (CDRX) mm 3.5
Cutting Depth Max (CDX) mm 3.5
Functional Width (WF) mm 9
Cutting Edge Length (mm) 7
Inclination Angle (LAMS) -11.0 deg
Tool Cutting Edge Angle Code (KAPRC) U
Cutting Diameter Internal Minimum (DCINN) 17
Tool Type U Type
Shank Diameter (DMM) 12
Height Of Tool Holder Shank (H) mm 11
Head Length (LH) mm 20
Tool Cutting Edge Angle (KAPR) 93.0 deg
Connection Text Workpiece Side (ctws) DC0702
Shank Width (b) mm 11.5
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 12
Rake Angle Orthogonal (gamo) 0.0 deg
• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Steel
• Insert Clamping System (ICS) Screw Lock
