Description

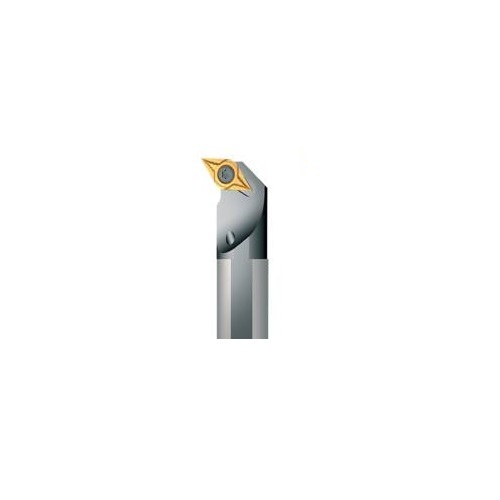

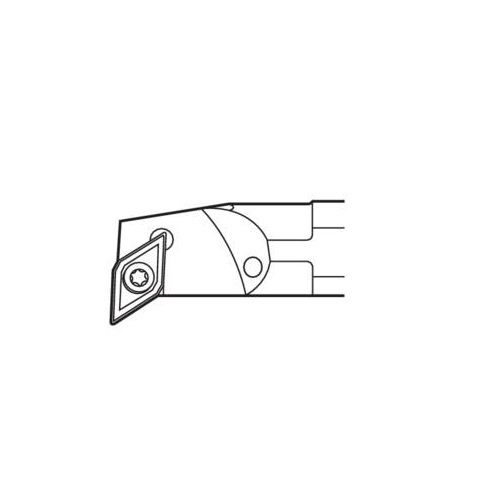

Turning Internal Toolholder (Steel - Screw Lock - U Type - D Insert Shape - 7° ISCA - Round)

  • Steel with coolant passage.
  • D insert shape.
  • 7° ISCA (Insert Side Clearance Angles).
  • Screw lock.
  • U tool type, offset shank with negative 3° (93°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114610
  • Brand Seco
  • Model Number 00093822
  • Barcode Number 93822000000107
  • Net Weight (kg) 0.117
  • Designation A12N-SDUCL07-R
  • Tool Type U Type

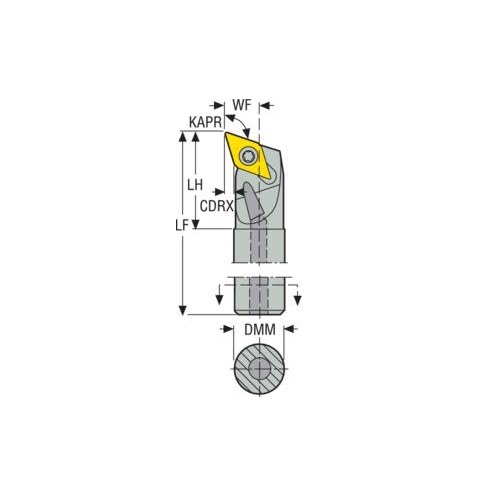

  • Cutting Depth Radial Max (CDRX) mm 2.5
  • Cutting Depth Max (CDX) mm 2.5
  • Functional Width (WF) mm 9
  • Cutting Edge Length (mm) 7
  • Inclination Angle (LAMS) -11.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) U
  • Cutting Diameter Internal Minimum (DCINN) 17
  • Functional Length (LF) 160
  • Shank Diameter (DMM) 12
  • Head Length (LH) mm 20
  • Tool Cutting Edge Angle (KAPR) 93.0 deg
  • Connection Text Workpiece Side (ctws) DC0702
  • Direction Of Cutting (hand) Left
  • Connection Text Machine Side (CTMS) 12
  • Rake Angle Orthogonal (gamo) 0.0 deg
  • Group Code 93822
  • Barcode 93822000000107
  • Type Turning Toolholder
  • Shank Type Cylindrical
  • Version (internal/external/both) Internal
  • Tool Holder Type Steel
  • Insert Clamping System (ICS) Screw Lock

Video

SKU: A0114610

Seco Internal Turning Toolholder Steel Screw Lock 160 x 12 x 7mm Left 93° D Insert Shape - Round A12N-SDUCL07-R

Turning Internal Toolholder (Steel - Screw Lock - U Type

$190.08
RRP $237.60
SAVE $47.52 (20%)
