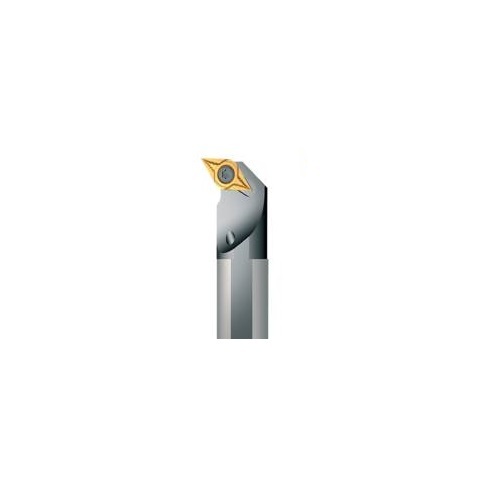

Seco Internal Turning Toolholder Steel Screw Lock Right 93° D Insert Shape - Round - SECO

Description

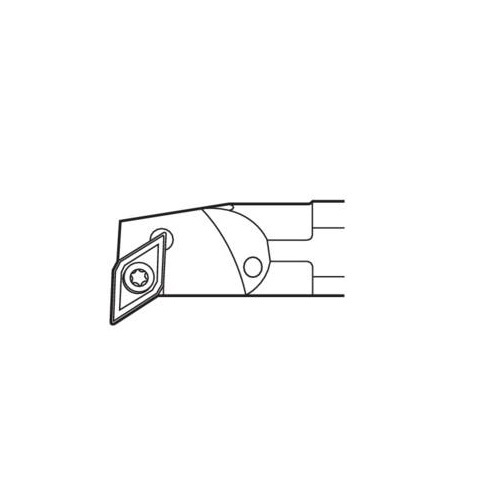

Turning Internal Toolholder (Steel - Screw Lock - U Type - D Insert Shape - 7° ISCA - Round)

Steel with coolant passage.
D insert shape.
7° ISCA (Insert Side Clearance Angles).
Screw lock.
U tool type, offset shank with negative 3° (93°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114614

Brand Seco

Model Number 00093821

Barcode Number 93821000000100

Net Weight (kg) 0.117

Designation A12N-SDUCR07-R

Tool Type U Type

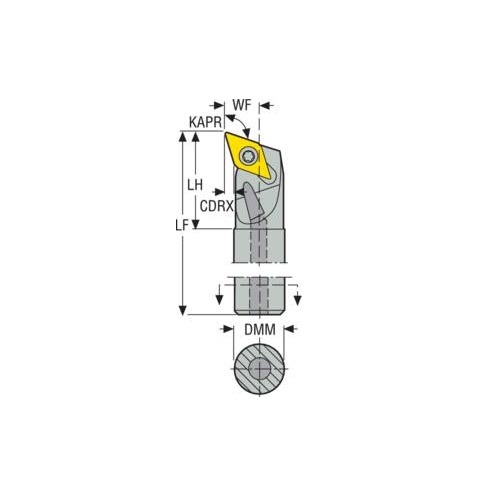

Cutting Depth Radial Max (CDRX) mm 2.5

Cutting Depth Max (CDX) mm 2.5

Functional Width (WF) mm 9

Cutting Edge Length (mm) 7

Inclination Angle (LAMS) -11.0 deg

Tool Cutting Edge Angle Code (KAPRC) U

Cutting Diameter Internal Minimum (DCINN) 17

Functional Length (LF) 160

Shank Diameter (DMM) 12

Head Length (LH) mm 20

Tool Cutting Edge Angle (KAPR) 93.0 deg

Connection Text Workpiece Side (ctws) DC0702

Direction Of Cutting (hand) Right

Connection Text Machine Side (CTMS) 12

Rake Angle Orthogonal (gamo) 0.0 deg

Type Turning Toolholder
Shank Type Cylindrical
Version (internal/external/both) Internal
Tool Holder Type Steel
Insert Clamping System (ICS) Screw Lock
