Specifications

AIMS SKU A0114632
Brand Seco
Model Number 00093843
Barcode Number 93843000000102
Net Weight (kg) 0.106
Designation A12M-STFCR11

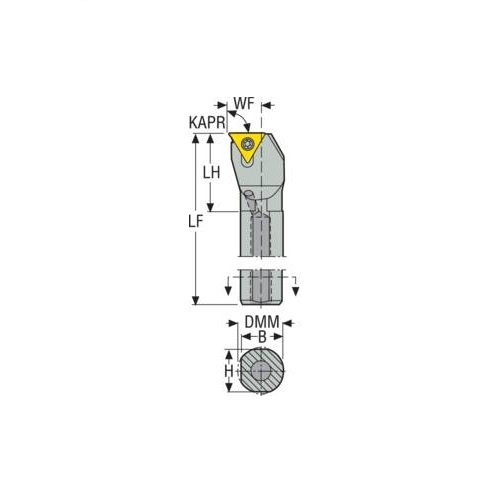

Shank Diameter (DMM) 12
Functional Width (WF) mm 9
Cutting Edge Length (mm) 11
Inclination Angle (LAMS) -10.0 deg
Tool Cutting Edge Angle Code (KAPRC) F
Cutting Diameter Internal Minimum (DCINN) 16
Tool Type F Type
Functional Length (LF) 150
Height Of Tool Holder Shank (H) mm 11
Head Length (LH) mm 21
Tool Cutting Edge Angle (KAPR) 90.0 deg
Connection Text Workpiece Side (ctws) TC1102
Shank Width (b) mm 11.5
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 12
Rake Angle Orthogonal (gamo) 0.0 deg
• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Steel
• Insert Clamping System (ICS) Screw Lock
