Specifications

AIMS SKU A0114625
Brand Seco
Model Number 75079498
Barcode Number 79498750000102
Net Weight (kg) 0.402
Designation A20Q-SDYNR11

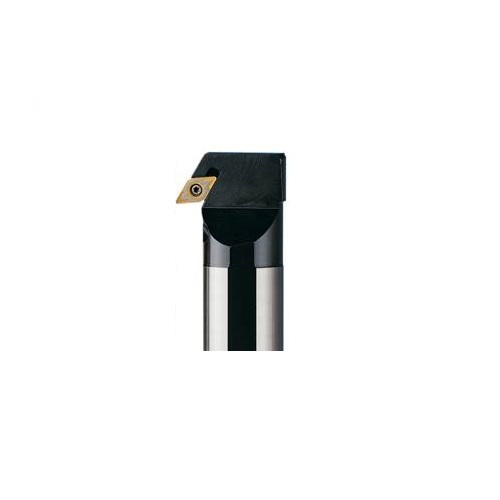

Type Turning Toolholder

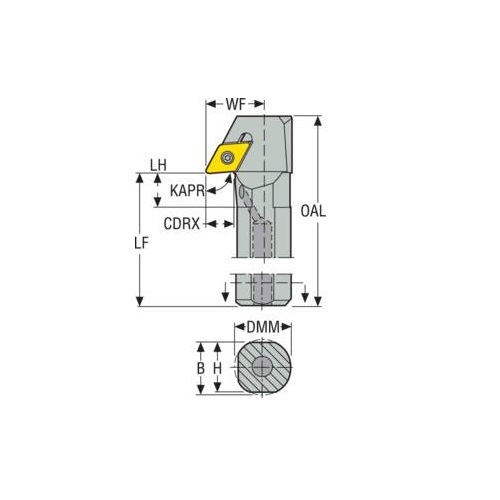

Shank Diameter (DMM) 20
Rake Angle Orthogonal (gamo) -5.0 deg
Body Diameter Max (BDX) mm 20
Cutting Depth Radial Max (CDRX) mm 10
Cutting Depth Max (CDX) mm 10
Functional Width (WF) mm 20
Cutting Edge Length (mm) 11
Inclination Angle (LAMS) -14.0 deg
Tool Cutting Edge Angle Code (KAPRC) Y
Cutting Diameter Internal Minimum (DCINN) 40
Tool Type Y Type
Functional Length (LF) 180
Connection Text Machine Side (CTMS) 20
Insert Clamping System (ICS) Screw Lock
Tool Holder Type Steel
Overall Length (OAL) mm 200
Height Of Tool Holder Shank (H) mm 18
Head Length (LH) mm 15
Tool Cutting Edge Angle (KAPR) 95.0 deg
Connection Text Workpiece Side (ctws) DN1104
Shank Width (b) mm 19
Version (internal/external/both) Internal
Direction Of Cutting (hand) Right
