Specifications

AIMS SKU A0114707
Brand Seco
Model Number 02829683
Barcode Number 29683028000105
Net Weight (kg) 0.5
Designation A10-SDQCR-2

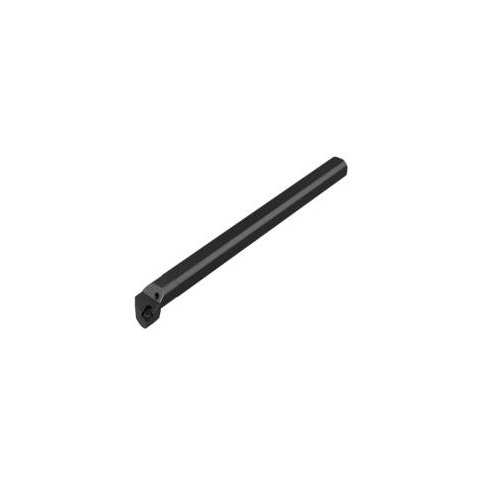

Type Turning Toolholder
Tool Holder Type Steel
Shank Type Cylindrical
Insert Size Inscribed Circle Diameter (mm) 2

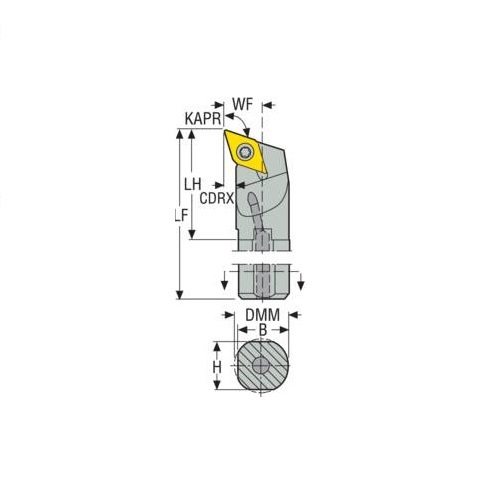

Functional Width (WF) mm 12.7
Inclination Angle (LAMS) -5.0 deg
Tool Cutting Edge Angle Code (KAPRC) Q
Cutting Diameter Internal Minimum (DCINN) 21.33
Functional Length (LF) 254
Shank Diameter (DMM) 15.88

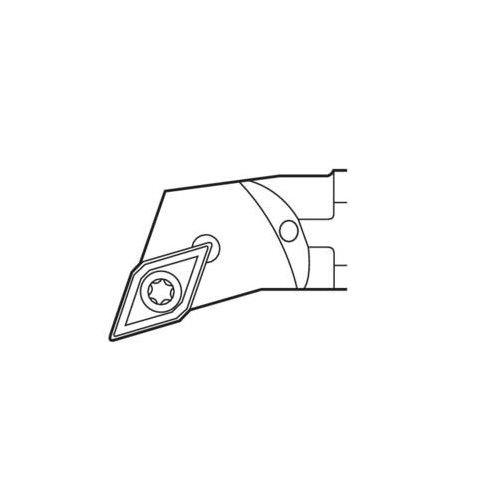

Insert Clamping System (ICS) Screw Lock
Rake Angle Orthogonal (gamo) 0.0 deg
Height Of Tool Holder Shank (H) mm 13.6
Head Length (LH) mm 15.9
Tool Cutting Edge Angle (KAPR) 107.5 deg
Connection Text Workpiece Side (ctws) DC0702
Shank Width (b) mm 14.7
Version (internal/external/both) Internal
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 15.88
