Specifications

AIMS SKU A0114708
Brand Seco
Model Number 02829691
Barcode Number 29691028000100
Net Weight (kg) 0.25
Designation A12-SDQCR-3

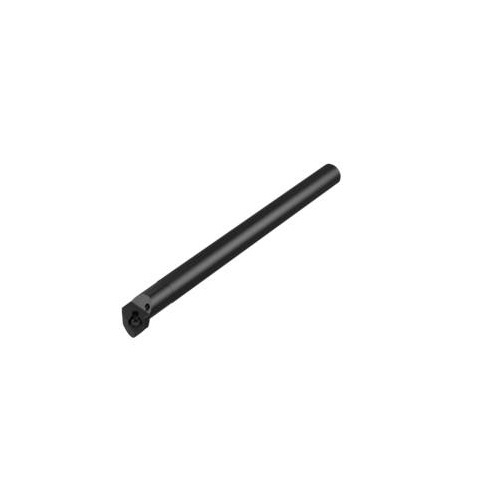

Type Turning Toolholder
Tool Holder Type Steel
Shank Type Cylindrical
Insert Size Inscribed Circle Diameter (mm) 3

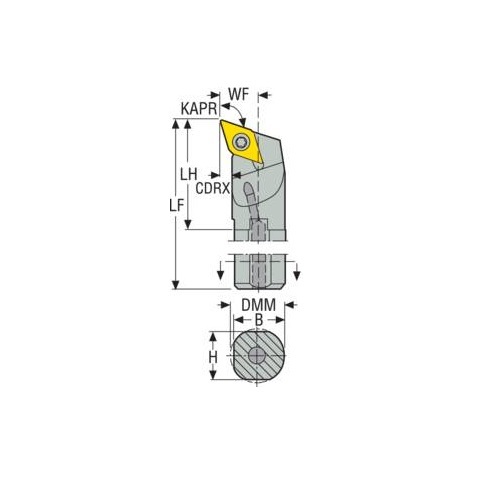

Functional Width (WF) mm 14.3
Inclination Angle (LAMS) -5.9 deg
Tool Cutting Edge Angle Code (KAPRC) Q
Cutting Diameter Internal Minimum (DCINN) 28.58
Functional Length (LF) 254
Shank Diameter (DMM) 19.05

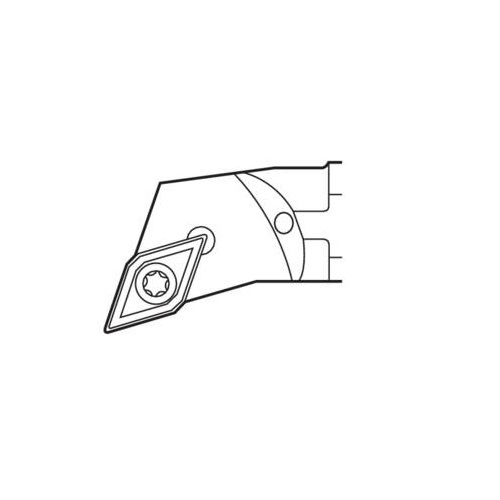

Insert Clamping System (ICS) Screw Lock
Rake Angle Orthogonal (gamo) 0.0 deg
Height Of Tool Holder Shank (H) mm 18
Head Length (LH) mm 19.6
Tool Cutting Edge Angle (KAPR) 107.5 deg
Connection Text Workpiece Side (ctws) DC11T3
Shank Width (b) mm 18.5
Version (internal/external/both) Internal
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 19.05
