Specifications

AIMS SKU A0114726
Brand Seco
Model Number 02829665
Barcode Number 29665028000101
Net Weight (kg) 0.062
Designation A06-SCFCR-2

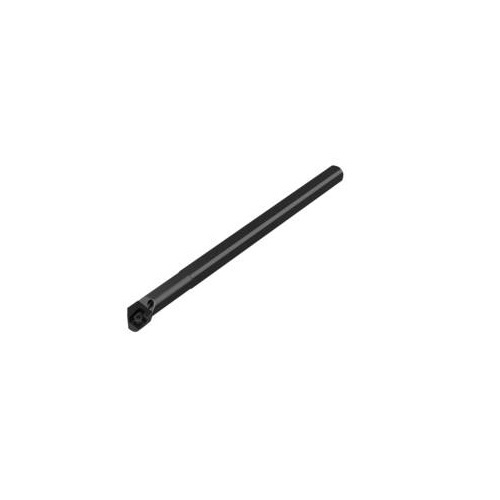

Type Turning Toolholder
Insert Clamping System (ICS) Screw Lock
Shank Type Cylindrical
Insert Size Inscribed Circle Diameter (mm) 2
Cutting Depth Radial Max (CDRX) mm 1.4
Cutting Depth Max (CDX) mm 0.4

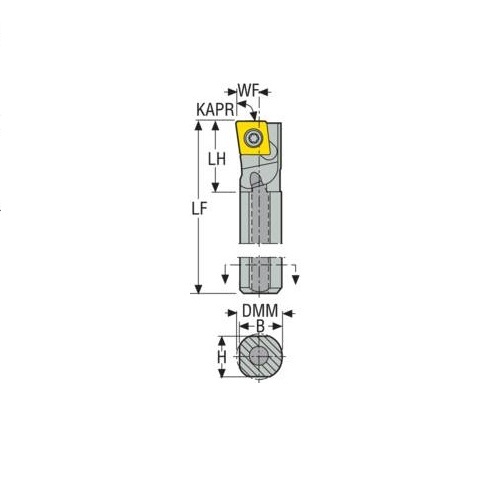

Functional Width (WF) mm 6.4
Inclination Angle (LAMS) -11.0 deg
Tool Cutting Edge Angle Code (KAPRC) F
Cutting Diameter Internal Minimum (DCINN) 12.9
Functional Length (LF) 152.4
Shank Diameter (DMM) 9.53
Rake Angle Orthogonal (gamo) 0.0 deg
Tool Holder Type Steel
Height Of Tool Holder Shank (H) mm 8
Head Length (LH) mm 10.2
Tool Cutting Edge Angle (KAPR) 90.0 deg
Connection Text Workpiece Side (ctws) CC0602
Shank Width (b) mm 8.8
Version (internal/external/both) Internal
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 9.525
