Specifications

AIMS SKU A0114727
Brand Seco
Model Number 02829670
Barcode Number 29670028000105
Net Weight (kg) 0.153
Designation A08-SCFCR-3

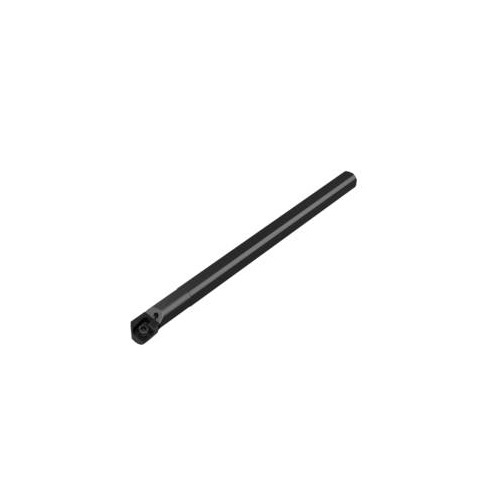

Type Turning Toolholder
Tool Holder Type Steel
Shank Type Cylindrical
Insert Size Inscribed Circle Diameter (mm) 3

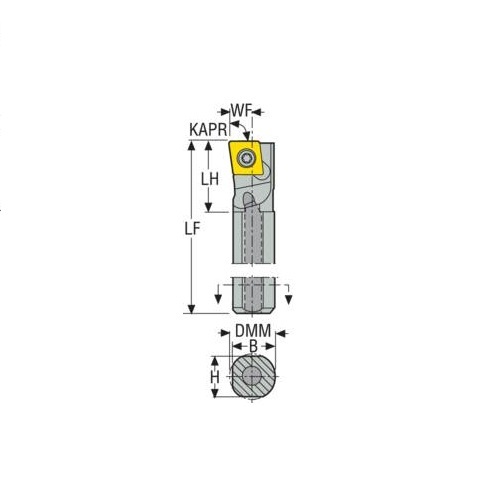

Functional Width (WF) mm 8
Inclination Angle (LAMS) -11.0 deg
Tool Cutting Edge Angle Code (KAPRC) F
Cutting Diameter Internal Minimum (DCINN) 16
Functional Length (LF) 203.2
Shank Diameter (DMM) 12.7

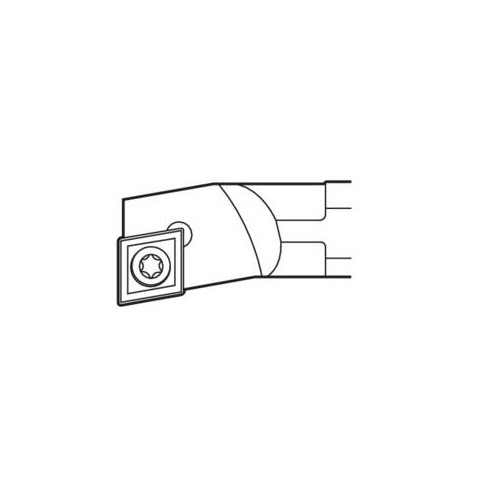

Insert Clamping System (ICS) Screw Lock
Rake Angle Orthogonal (gamo) 0.0 deg
Height Of Tool Holder Shank (H) mm 10.8
Head Length (LH) mm 39.4
Tool Cutting Edge Angle (KAPR) 90.0 deg
Connection Text Workpiece Side (ctws) CC09T3
Shank Width (b) mm 11.8
Version (internal/external/both) Internal
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 12.7
