Seco ISO 9766 SD405 Crownloc™ Plus Exchangeable Tip Drill 131.2 x 15.88mm SD405-12.00/12.49-63-0625R7

ISO 9766 SD405 Crownloc™ Plus Exchangeable Tip Drill

  • Internal coolant.
  • ISO9766 fits holders: Weldon 1835B, ISO 5414, DIN 60880.

All About Crownloc™ Plus:

  • Crownloc™ Plus is a new generation of Seco drills with exchangeable crowns.
  • Featuring a new geometry, coating and locking interface.
  • Crownloc Plus improves chip evacuation and wear resistance in a variety of materials.
  • Crownloc Plus features a strong drill body design, high-strength locking interface with deep and wide flutes and polished body.
  • The drill’s crowns have a new optimized geometry for improved chip formation and enhanced centering capability.
  • The combination of a TiAlN coating, low-friction TiN coating on the exchangeable head and 10% micro-grain substrate serve to increase the toughness and wear resistance while reducing the potential for edge build-up.
  • Crownloc Plus provides you with high productivity, excellent chip evacuation, flexibility, and easy handling.
  • These lead to increased output, higher process security, reduction of tool inventory and elimination of regrinding costs.

Specifications

  • AIMS SKU A0114195
  • Brand Seco
  • Model Number 02623591
  • Barcode Number 23591026000101
  • Net Weight (kg) 0.237
  • Designation SD405-16.00/16.99-85-0750R7
  • Shank Length (LS) mm 50
  • Usable Length (LU) mm 85
  • Peripheral Effective Cutting Edge Count (ZEFP) 2
  • Cutting Diameter Minimum (DCN) mm 16
  • Flange Diameter (DF) mm 24
  • Functional Length Secondary (LFS) mm 111.9
  • Shank Diameter (DMM) X Overall Length (OAL) mm 19.05 x 161.9
  • Cutting Diameter Maximum (DCX) mm 17
  • Usable Length Max (LUX) mm 95.9
  • Type Exchangeable Tip Drill
  • Shank Type ISO 9766

Video

SKU: A0114195

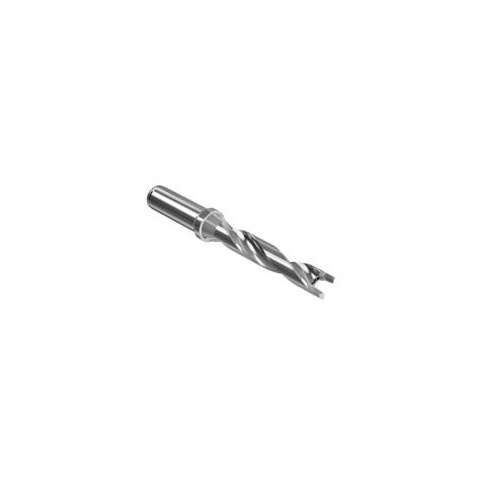

Seco ISO 9766 SD405 Crownloc™ Plus Exchangeable Tip Drill 161.9 x 19.05mm SD405-16.00/16.99-85-0750R7

ISO 9766 Crownloc™ Plus Exchangeable Tip Drill

$575.82
RRP $664.40
SAVE $88.58 (13%)
