Specifications
- AIMS SKU A0114222
- Brand Seco
- Model Number 02623615
- Barcode Number 23615026000104
- Net Weight (kg) 0.172
- Designation SD408-12.00/12.49-100-16R7

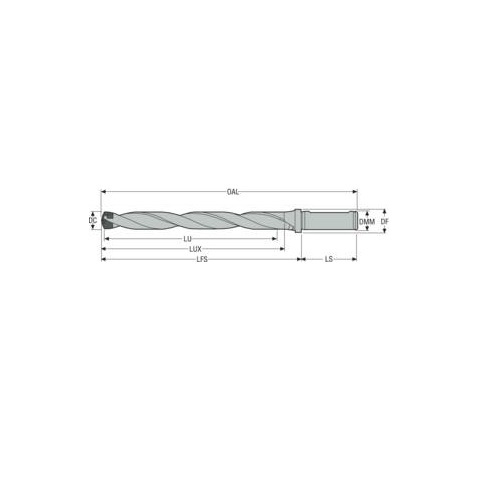

- Usable Length Max (LUX) mm 108.2
- Functional Length Secondary (LFS) mm 120.2
- Peripheral Effective Cutting Edge Count (ZEFP) 2
- Cutting Diameter Maximum (DCX) mm 12.5
- Flange Diameter (DF) mm 20
- Usable Length (LU) mm 100
- Shank Diameter (DMM) X Overall Length (OAL) mm 16 x 168.2
- Cutting Diameter Minimum (DCN) mm 12
- Shank Length (LS) mm 48
- Type Exchangeable Tip Drill
- Shank Type ISO 9766
SKU: A0114222

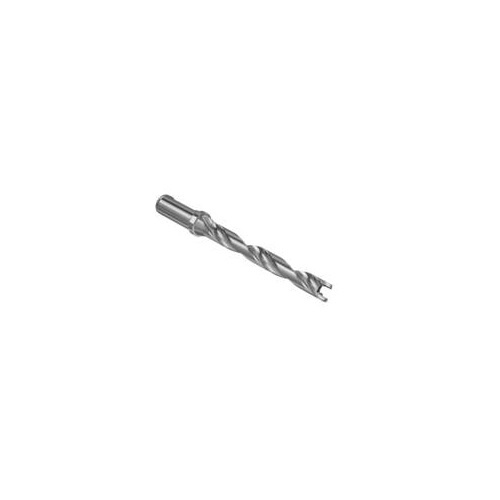

Seco ISO 9766 SD408 Crownloc™ Plus Exchangeable Tip Drill 168.2 x 16mm SD408-12.00/12.49-100-16R7
ISO 9766 SD408 Crownloc™ Plus Exchangeable Tip Drill
$594.88
SAVE $91.52 (13%)
