Specifications
- AIMS SKU A0114221
- Brand Seco
- Model Number 02623639
- Barcode Number 23639026000100
- Net Weight (kg) 0.169
- Designation SD408-12.00/12.49-100-0625R7

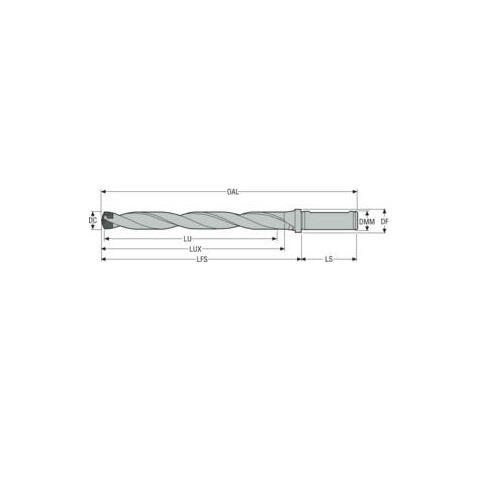

- Shank Length (LS) mm 48
- Usable Length (LU) mm 100
- Peripheral Effective Cutting Edge Count (ZEFP) 2
- Cutting Diameter Minimum (DCN) mm 12
- Flange Diameter (DF) mm 20
- Functional Length Secondary (LFS) mm 120.2
- Shank Diameter (DMM) X Overall Length (OAL) mm 15.88 x 168.2
- Cutting Diameter Maximum (DCX) mm 12.5
- Usable Length Max (LUX) mm 108.2
- Type Exchangeable Tip Drill
- Shank Type ISO 9766
SKU: A0114221

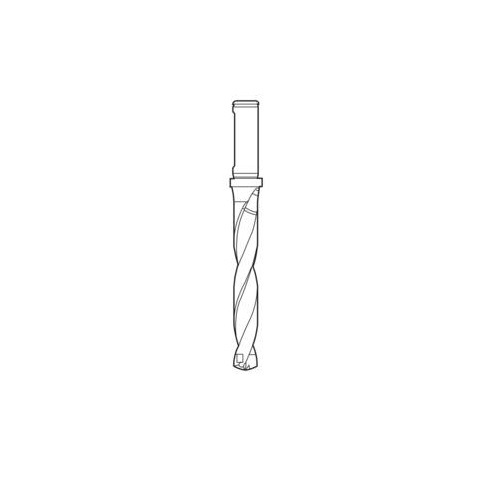

Seco ISO 9766 SD408 Crownloc™ Plus Exchangeable Tip Drill 168.2 x 15.88mm SD408-12.00/12.49-100-0625R7
ISO 9766 SD408 Crownloc™ Plus Exchangeable Tip Drill
$594.88
SAVE $91.52 (13%)
