Specifications

AIMS SKU A0114449
Brand Seco
Model Number 02411154
Barcode Number 11154024000105
Net Weight (kg) 1.036
Designation S25T-PDUNL11

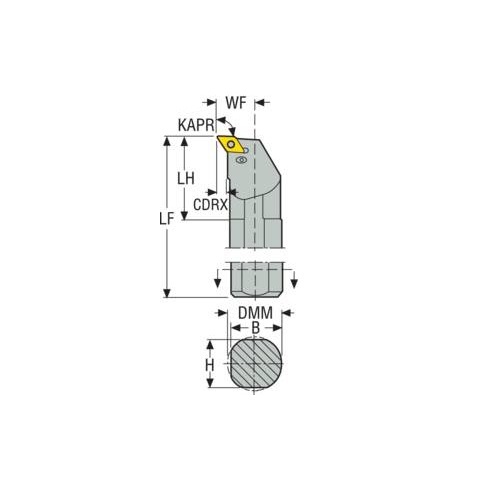

Functional Length (LF) 300mm
Cutting Depth Radial Max (CDRX) mm 4.5
Cutting Depth Max (CDX) mm 4.5
Functional Width (WF) mm 17
Cutting Edge Length (mm) 11
Inclination Angle (LAMS) -13.0 deg
Tool Cutting Edge Angle Code (KAPRC) U
Cutting Diameter Internal Minimum (DCINN) 32
Tool Type U Type
Shank Diameter (DMM) 25mm
Height Of Tool Holder Shank (H) mm 23
Head Length (LH) mm 45
Tool Cutting Edge Angle (KAPR) 93.0 deg
Connection Text Workpiece Side (ctws) DN1104
Shank Width (b) mm 23
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 25
Rake Angle Orthogonal (gamo) -6.0 deg
• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Solid Steel
• Insert Clamping System (ICS) Pin Lock
