Specifications

AIMS SKU A0114454
Brand Seco
Model Number 02411153
Barcode Number 11153024000108
Net Weight (kg) 1.03

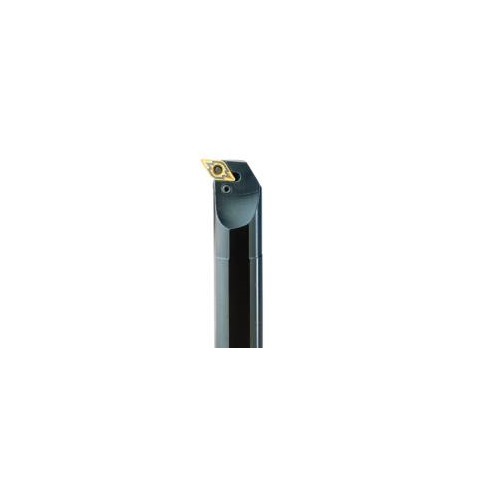

Designation S25T-PDUNR11

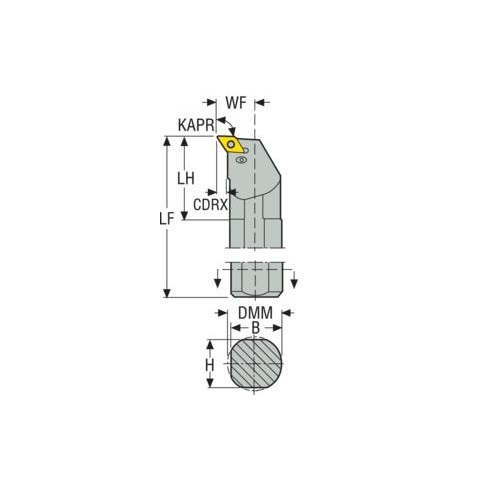

Functional Length (LF) 300mm
Cutting Depth Radial Max (CDRX) mm 4.5
Cutting Depth Max (CDX) mm 4.5
Functional Width (WF) mm 17
Cutting Edge Length (mm) 11
Inclination Angle (LAMS) -13.0 deg
Tool Cutting Edge Angle Code (KAPRC) U
Cutting Diameter Internal Minimum (DCINN) 32
Tool Type U Type
Shank Diameter (DMM) 25mm
Height Of Tool Holder Shank (H) mm 23
Head Length (LH) mm 45
Tool Cutting Edge Angle (KAPR) 93.0 deg
Connection Text Workpiece Side (ctws) DN1104
Shank Width (b) mm 23
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 25
Rake Angle Orthogonal (gamo) -6.0 deg
• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Solid Steel
• Insert Clamping System (ICS) Pin Lock
