Specifications
- AIMS SKU A0122831
- Brand Seco
- Model Number 74015221
- Barcode Number 15221740001009
- Type Milling Insert
- Designation SEKN1203AFTN-M14,T25M
- Grade T25M
- Weight (kg) 0.006
- Grade Type Carbide CVD
- Cutting Edge Count (CEDC) 4
- Inscribed Circle Diameter (IC) 12.7
- Insert Hand (IH) Neutral

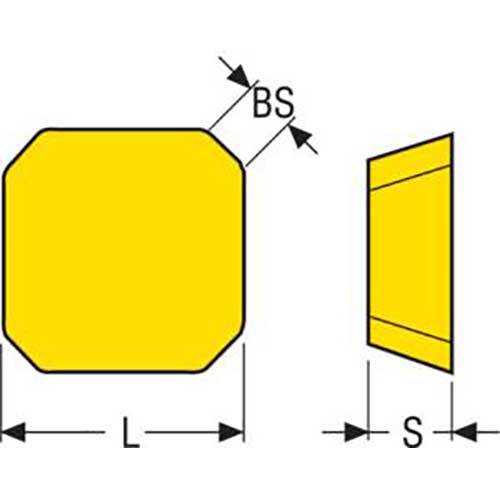

- Insert Thickness (S) mm 3.18
- Corner Radius (RE) mm 1
- Insert Seat Size Code (SSC) SEKN1203.
- Clearance Angle Major (an) Deg 20.0 deg
- Theoretical Cutting Edge Length (L) mm 12.7
- Wiper Edge Length (bs) Mm 1.5
- Wiper Edge Property 0
SKU: A0122831

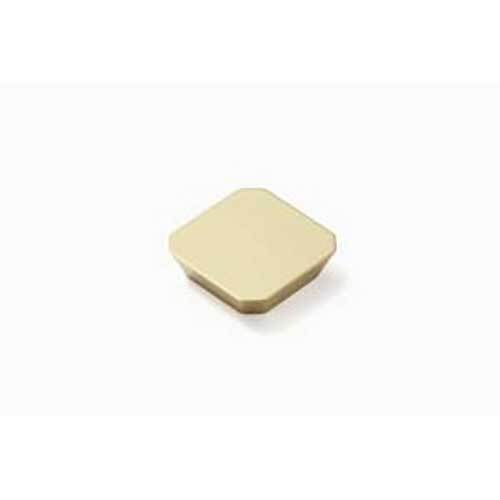

Seco Milling Insert 3.18 x 1 x 12.7mm T25M Grade Neutral N Type - M14 SEKN1203AFTN-M14,T25M - Pack of 10
Milling Insert T25M Grade N Type - M14
$259.30
