Specifications
- AIMS SKU A0122832
- Brand Seco
- Model Number 74017144
- Barcode Number 17144740001009
- Type Milling Insert
- Designation SEKR1203AFTN-ME13,T25M
- Grade T25M
- Weight (kg) 0.006
- Grade Type Carbide CVD
- Cutting Edge Count (CEDC) 4
- Inscribed Circle Diameter (IC) 12.7
- Insert Hand (IH) Neutral
- Insert Thickness (S) mm 3.18
- Corner Radius (RE) mm 1
- Insert Seat Size Code (SSC) SEKR1203.
- Clearance Angle Major (an) Deg 20.0 deg

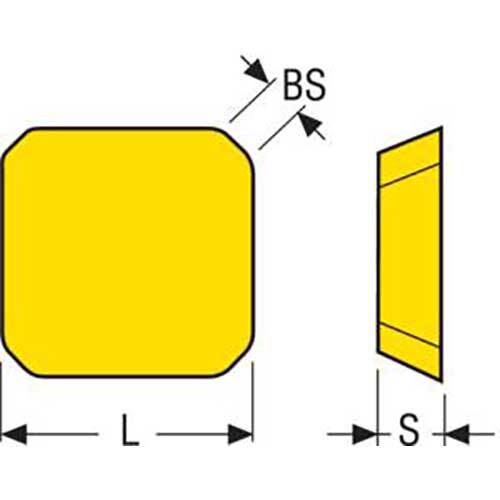

- Theoretical Cutting Edge Length (L) mm 12.7
- Wiper Edge Length (bs) Mm 1.5
- Wiper Edge Property 0
SKU: A0122832

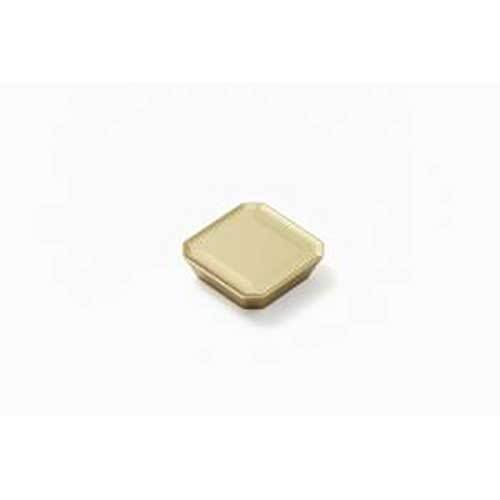

Seco Milling Insert 3.18 x 1 x 12.7mm T25M Grade Neutral R Type - ME13 SEKR1203AFTN-ME13,T25M - Pack of 10
Milling Insert T25M Grade R Type - ME13
$259.30
