Specifications

AIMS SKU A0122829
Brand Seco
Model Number 00023612
Barcode Number 23612000001003

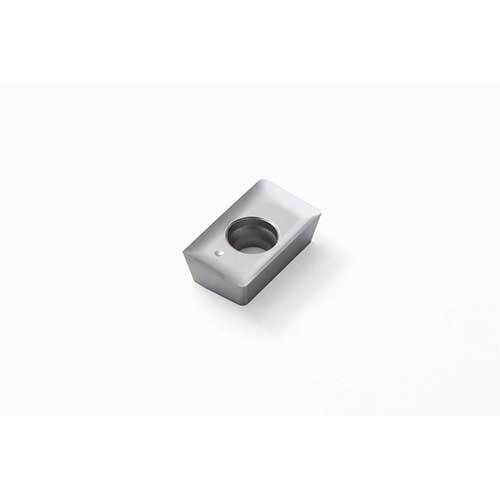

Type Milling Insert
Designation APEX160408FR-E08,H15
Grade H15
Weight (kg) 0.007
Grade Type Carbide Uncoated
Cutting Edge Count (CEDC) 2
Insert Hand (IH) Right

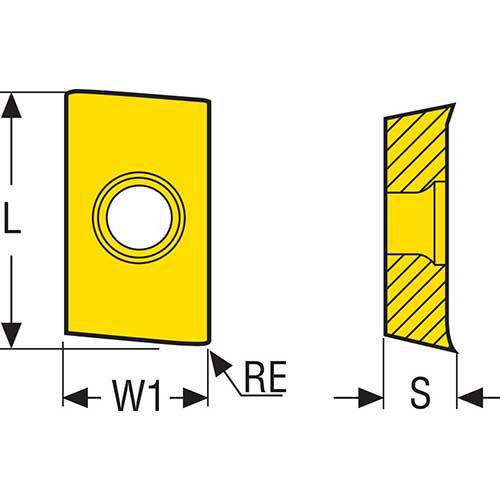

Cutting Edge Effective Length (LE) mm 15.8
Insert Thickness (S) mm 4.76
Corner Radius (RE) mm 0.8
Insert Seat Size Code (SSC) APEX16
Clearance Angle Major (an) Deg 11.0 deg
Theoretical Cutting Edge Length (L) mm 16.45
Wiper Edge Length (bs) Mm 1.5
Insert Width (w1) Mm 9.5
Insert Rake Angle (GAN) deg 25.0 deg
