Specifications
- AIMS SKU A0122837
- Brand Seco
- Model Number 02505883
- Barcode Number 5883025001000
- Type Milling Insert
- Designation CCMX120412T-MD11,F40M
- Grade F40M
- Weight (kg) 0.009
- Grade Type Carbide PVD
- Cutting Edge Count (CEDC) 2
- Insert Hand (IH) Right

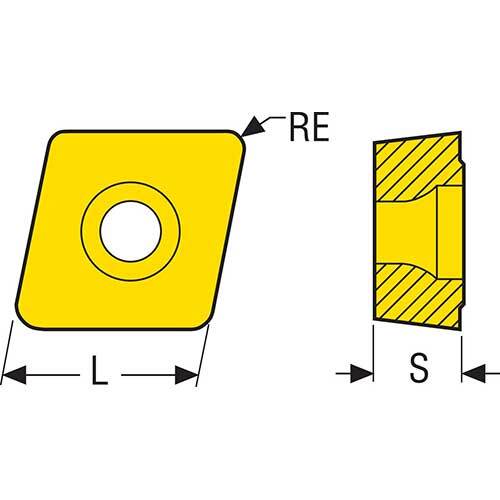

- Insert Thickness (S) mm 4.76
- Corner Radius (RE) mm 1.2
- Insert Seat Size Code (SSC) CCMX12.
- Clearance Angle Major (an) Deg 7.0 deg
- Insert Included Angle (epsr) Deg 80.0 deg
- Theoretical Cutting Edge Length (L) mm 12.7
- Insert Rake Angle (GAN) deg 0.0 deg
SKU: A0122837

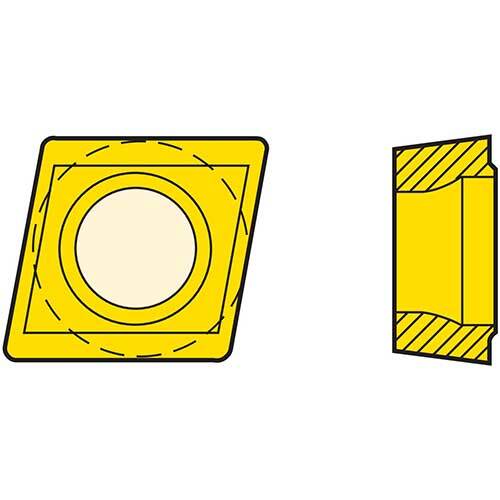

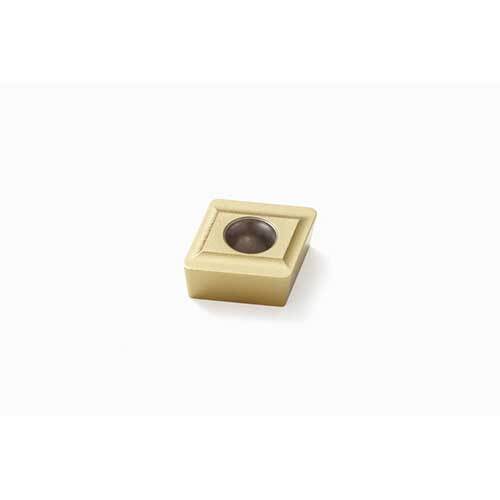

Seco Milling Insert 4.76 x 1.2 x 12.7mm F40M Grade Right X Type - MD11 CCMX120412T-MD11,F40M - Pack of 10
Milling Insert F40M Grade X Type - MD11
$316.50
