Description

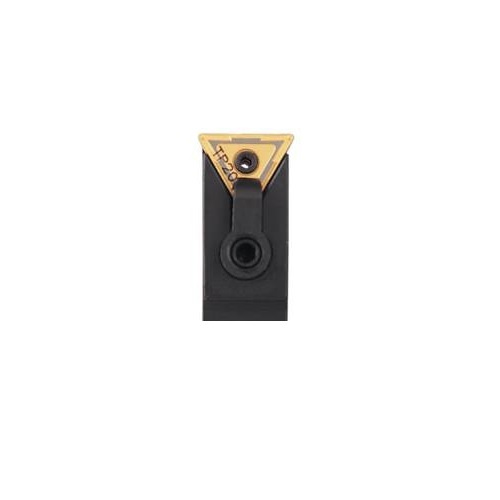

Seco Turning External Toolholder Multiple Lock Neutral 90° T Insert Shape MTCNN-12-4

Turning External Toolholder (Multiple Lock - C Type - T Insert Shape)

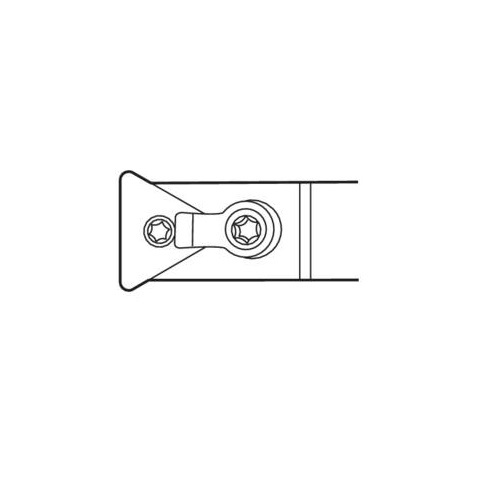

  • Multiple locks - multiple lock assembly, (Pin and clamp lock) / (M-Type tool holders).
  • T insert shape.
  • C tool type, shank with 0° end cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0115139
  • Brand Seco
  • Model Number 00013830
  • Barcode Number 13830000000106
  • Net Weight (kg) 0.44
  • Designation MTCNN-12-4

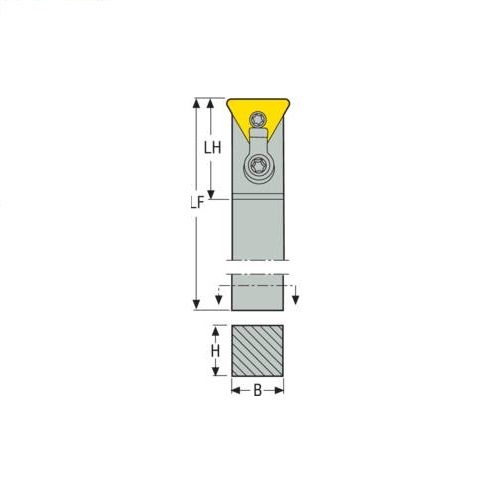

  • Functional Length (LF) 152.4mm
  • Functional Width (mm) 0
  • Insert Shape Code (SC) T
  • Insert Size Inscribed Circle Diameter (mm) 4
  • Functional Width (WF) mm 0
  • Cutting Edge Length (mm) 4
  • Inclination Angle (LAMS) -7.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) C
  • Tool Type C Type
  • Height Of Tool Holder Shank (H) mm 19.1
  • Tool Cutting Edge Angle (KAPR) 90.0 deg
  • Connection Text Workpiece Side (ctws) TN2204
  • Shank Width (b) mm 19.1
  • Direction Of Cutting (hand) Neutral
  • Connection Text Machine Side (CTMS) 19.05
  • Rake Angle Axial (gamp) -7.0 deg
  • Rake Angle Orthogonal (gamo) 0.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Multiple Lock

Video

SKU: A0115139

Seco Turning External Toolholder Multiple Lock 152.4 x 0 x 4mm Neutral 90° T Insert Shape MTCNN-12-4

Multiple Lock - C Type - T Insert Shape

$151.36
RRP $189.20
SAVE $37.84 (20%)
