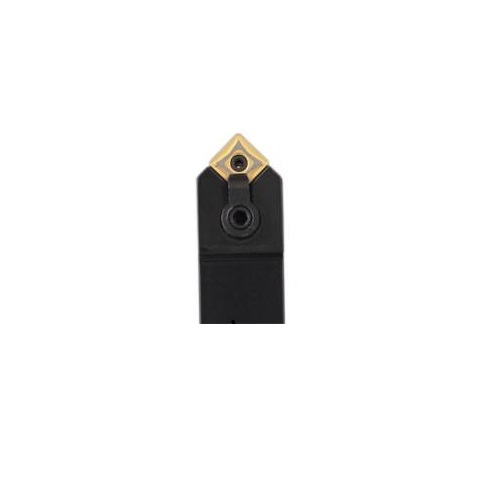

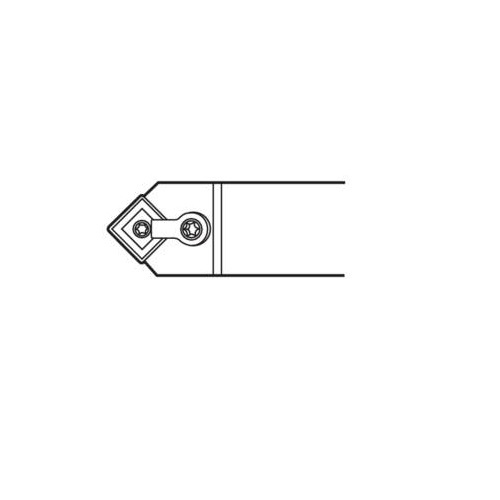

Seco Turning External Toolholder Multiple Lock Neutral 45° S Insert Shape MSDNN-10-3

Turning External Toolholder (Multiple Lock - D Type - S Insert Shape)

  • Multiple locks - multiple lock assembly, (Pin and clamp lock) / (M-Type tool holders).
  • S insert shape.
  • D tool type, straight shank with 45° side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0115119
  • Brand Seco
  • Model Number 00013330
  • Barcode Number 13330000000101
  • Net Weight (kg) 0.26
  • Designation MSDNN-10-3

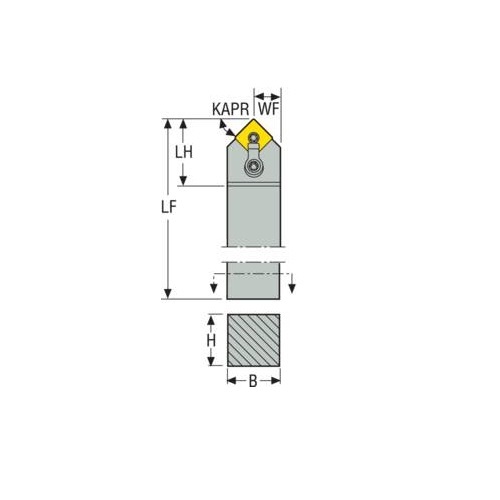

  • Functional Length (LF) 114.3mm
  • Insert Shape Code (SC) S
  • Head Length (LH) 35.6mm
  • Cutting Diameter Internal Minimum 3 (mm) 180
  • Insert Size Inscribed Circle Diameter (mm) 3
  • Ramping Angle Maximum (RPMX) 45.0 deg
  • Functional Width (WF) mm 9.5
  • Cutting Edge Length (mm) 3
  • Inclination Angle (LAMS) -6.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) D
  • Tool Type D Type
  • Insert Seat Size Code (SSC) 903
  • Height Of Tool Holder Shank (H) mm 15.9
  • Tool Cutting Edge Angle (KAPR) 45.0 deg
  • Connection Text Workpiece Side (ctws) SN0903
  • Shank Width (b) mm 15.9
  • Direction Of Cutting (hand) Neutral
  • Connection Text Machine Side (CTMS) 15.88
  • Rake Angle Axial (gamp) -7.0 deg
  • Rake Angle Orthogonal (gamo) -6.0 deg
  • Rake Angle Radial (gamf) 0.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Multiple Lock

Video

SKU: A0115119

Seco Turning External Toolholder Multiple Lock 114.3 x 9.5 x 3mm Neutral 45° S Insert Shape MSDNN-10-3

Multiple Lock - D Type - S Insert Shape

$134.64
RRP $168.30
SAVE $33.66 (20%)
