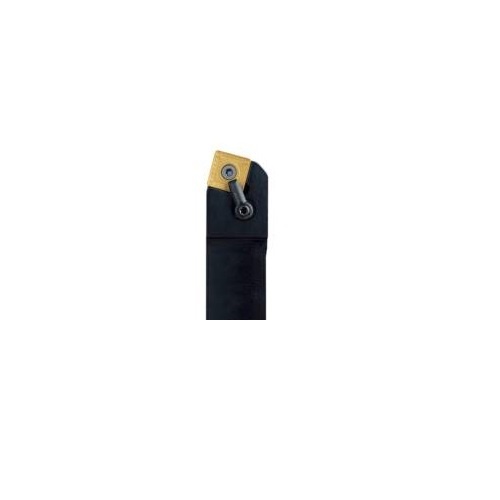

Seco Turning External Toolholder Multiple Lock Left 75° S Insert Shape MSBNL3232P19

Turning External Toolholder (Multiple Lock - B Type - S Insert Shape)

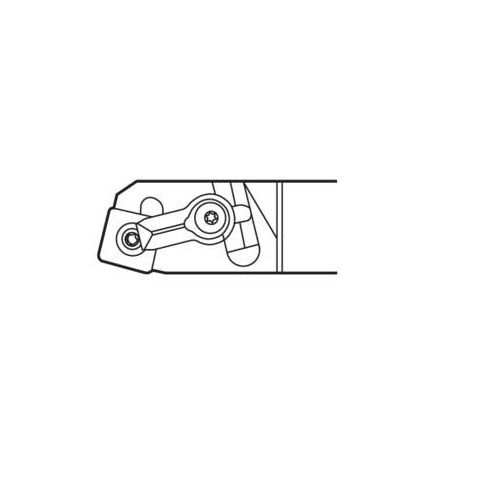

  • Multiple locks - multiple lock assembly, (Pin and clamp lock) / (M-Type tool holders).
  • S insert shape.
  • B tool type, straight shank with 15° side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0115115
  • Brand Seco
  • Model Number 02464202
  • Barcode Number 64202024000105
  • Net Weight (kg) 1.325
  • Designation MSBNL3232P19

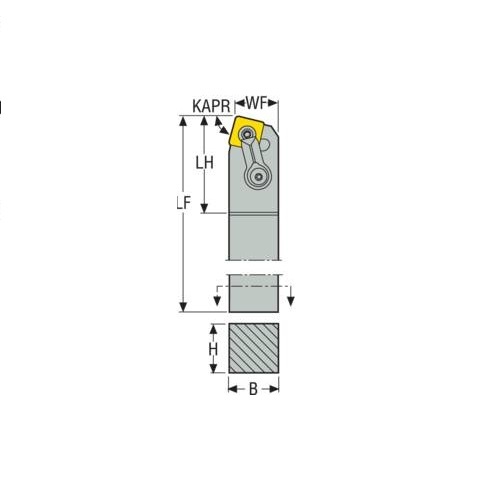

  • Functional Length (LF) 170mm
  • Insert Shape Code (SC) S
  • Head Length (LH) 45mm
  • Functional Width (WF) mm 27
  • Cutting Edge Length (mm) 19
  • Inclination Angle (LAMS) -6.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) B
  • Tool Type B Type
  • Height Of Tool Holder Shank (H) mm 32
  • Tool Cutting Edge Angle (KAPR) 75.0 deg
  • Connection Text Workpiece Side (ctws) SN1906
  • Shank Width (b) mm 32
  • Direction Of Cutting (hand) Left
  • Connection Text Machine Side (CTMS) 3232
  • Rake Angle Orthogonal (gamo) -6.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Multiple Lock

Video

SKU: A0115115

Seco Turning External Toolholder Multiple Lock 170 x 45 x 19mm Left 75° S Insert Shape MSBNL3232P19

Multiple Lock - B Type - S Insert Shape

$213.84
RRP $267.30
SAVE $53.46 (20%)
