Specifications
- AIMS SKU A0115159
- Brand Seco
- Model Number 00014455
- Barcode Number 14455000000100
- Net Weight (kg) 1.445
- Designation MTJNLS-20-5

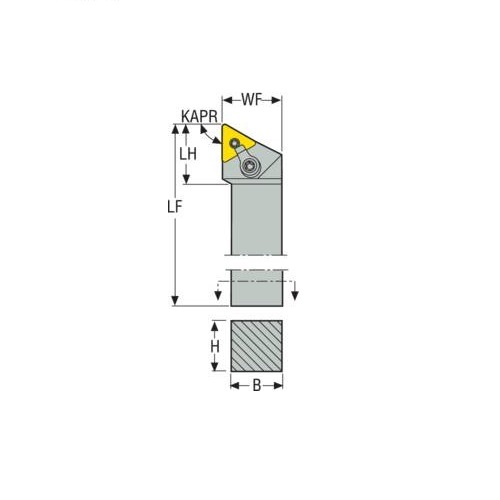

- Functional Length (LF) 178mm
- Functional Width (mm) 38.1
- Insert Shape Code (SC) T
- Insert Size Inscribed Circle Diameter (mm) 5
- Functional Width (WF) mm 38.1
- Cutting Edge Length (mm) 5
- Inclination Angle (LAMS) -5.0 deg
- Tool Cutting Edge Angle Code (KAPRC) J
- Tool Type J Type
- Height Of Tool Holder Shank (H) mm 31.8
- Tool Cutting Edge Angle (KAPR) 93.0 deg
- Connection Text Workpiece Side (ctws) TN2706
- Shank Width (b) mm 31.8
- Direction Of Cutting (hand) Left
- Connection Text Machine Side (CTMS) 31.75
- Rake Angle Axial (gamp) -5.0 deg
- Rake Angle Orthogonal (gamo) -5.0 deg
- Type Turning Toolholder
- Shank Type Square shank
- Version (internal/external/both) External
- Insert Clamping System (ICS) Multiple Lock
SKU: A0115159
On Sale

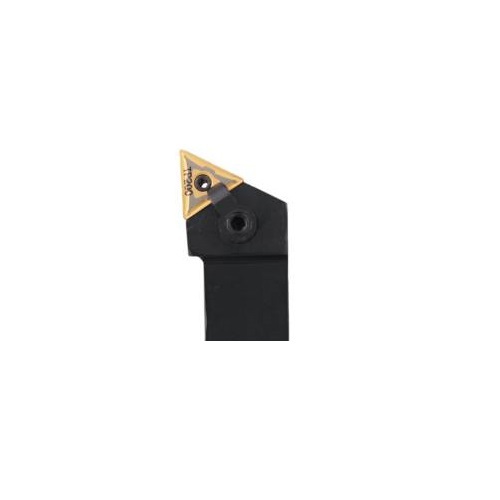

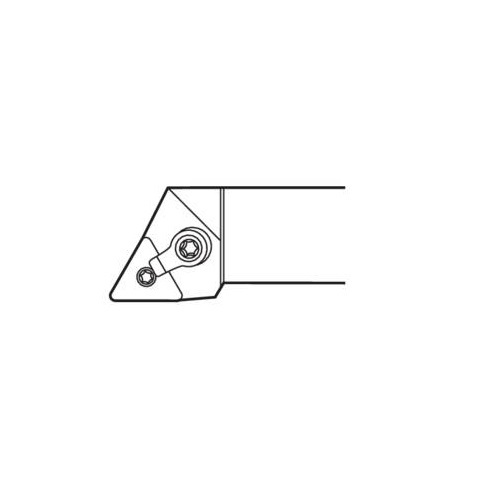

Seco Turning External Toolholder Multiple Lock 178 x 38.1 x 5mm Left 93° T Insert Shape MTJNLS-20-5
Multiple Lock - J Type - T Insert Shape
$181.76
