Specifications

AIMS SKU A0115167
Brand Seco
Model Number 00012889
Barcode Number 12889000000105
Net Weight (kg) 1
Designation MVJNL-20-4D
Insert Seat Size Code (SSC) 1604
Functional Width (mm) 38.1
Insert Shape Code (SC) V
Cutting Diameter Internal Minimum 3 (mm) 160
Insert Size Inscribed Circle Diameter (mm) 4
Ramping Angle Maximum (RPMX) 51.1 deg

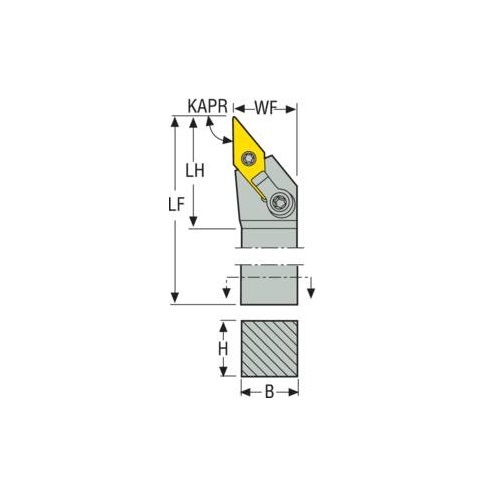

Functional Width (WF) mm 38.1
Cutting Edge Length (mm) 4
Inclination Angle (LAMS) -13.0 deg
Tool Cutting Edge Angle Code (KAPRC) J
Tool Type J Type
Functional Length (LF) 152.4mm
Shank Length (LS) mm 101.1
Height Of Tool Holder Shank (H) mm 31.8
Tool Cutting Edge Angle (KAPR) 93.0 deg
Functional Height (HF) mm 31.8
Cutting Depth Maximum (cdx) mm 16.6
Connection Text Workpiece Side (ctws) VN2204
Shank Width (b) mm 31.8
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 31.75
Rake Angle Axial (gamp) -13.0 deg
Rake Angle Orthogonal (gamo) -4.0 deg

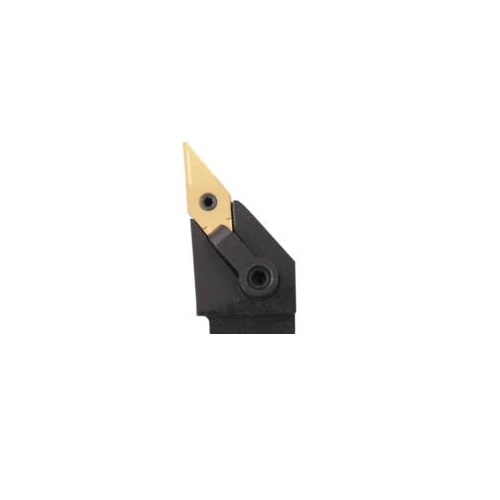

• Type Turning Toolholder
• Shank Type Square shank
• Version (internal/external/both) External
• Insert Clamping System (ICS) Multiple Lock
