Description

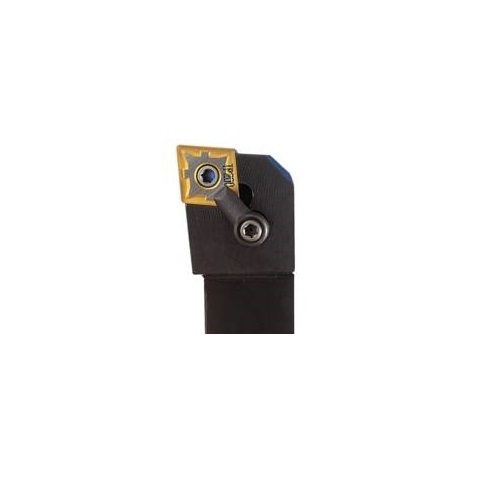

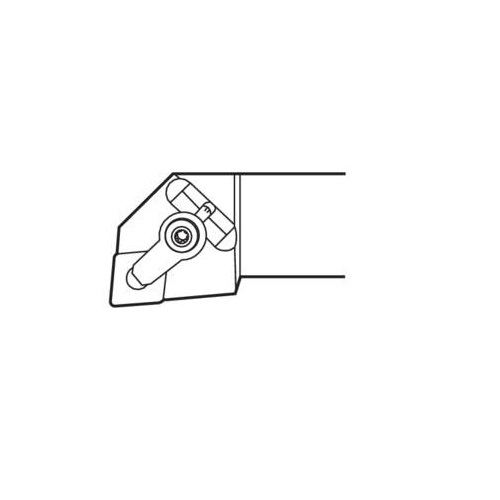

Seco Turning External Toolholder Multiple Lock Left 95° C Insert Shape MCLNL-16-6D

Turning External Toolholder (Multiple Lock - L Type - C Insert Shape)

  • Multiple locks - multiple lock assembly, (Pin and clamp lock) / (M-Type tool holders).
  • C insert shape.
  • L tool type, offset shank with –5° end or side cutting edge.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0115092
  • Brand Seco
  • Model Number 00012669
  • Barcode Number 12669000000103
  • Net Weight (kg) 0.84
  • Designation MCLNL-16-6D
  • Shank Length (LS) mm 112.4
  • Insert Shape Code (SC) C
  • Cutting Diameter Internal Minimum 3 (mm) 305
  • Insert Size Inscribed Circle Diameter (mm) 6
  • Ramping Angle Maximum (RPMX) 5.0 deg
  • Functional Width (WF) mm 31.8
  • Cutting Edge Length (mm) 6
  • Inclination Angle (LAMS) -6.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) L
  • Tool Type L Type
  • Functional Length (LF) 152.4mm
  • Height Of Tool Holder Shank (H) mm 25.4
  • Tool Cutting Edge Angle (KAPR) 95.0 deg
  • Functional Height (HF) mm 25.4
  • Cutting Depth Maximum (cdx) mm 1.9
  • Connection Text Workpiece Side (ctws) CN1906
  • Shank Width (b) mm 25.4
  • Direction Of Cutting (hand) Left
  • Connection Text Machine Side (CTMS) 25.4
  • Rake Angle Axial (gamp) -5.5 deg
  • Rake Angle Orthogonal (gamo) -6.0 deg
  • Rake Angle Radial (gamf) -6.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Multiple Lock

Video

SKU: A0115092

Seco Turning External Toolholder Multiple Lock 152.4 x 31.8 x 6mm Left 95° C Insert Shape MCLNL-16-6D

Multiple Lock - L Type - C Insert Shape

$158.40
RRP $198.00
SAVE $39.60 (20%)
