Description

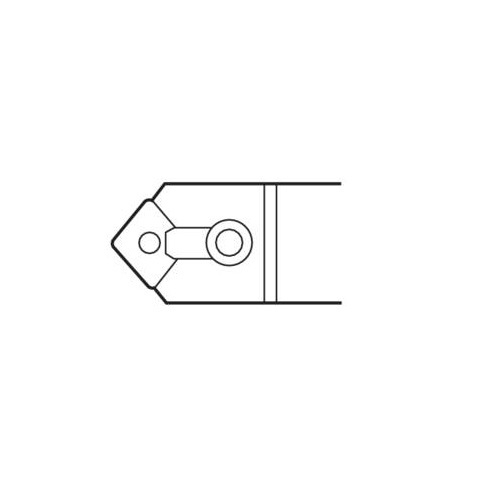

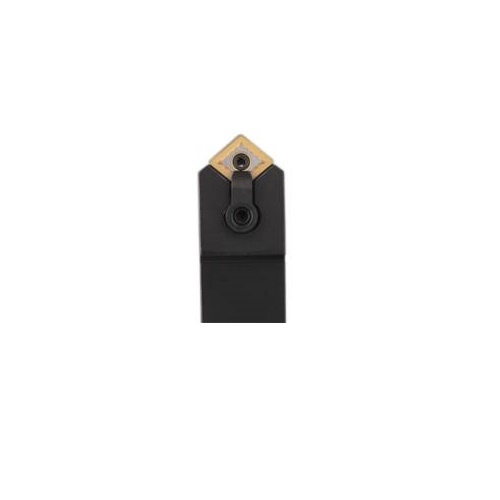

Seco Turning External Toolholder Multiple Lock Right 40.2° C Insert Shape MCMNN-16-4

Turning External Toolholder (Multiple Lock - M Type - C Insert Shape)

  • Multiple locks - multiple lock assembly, (Pin and clamp lock) / (M-Type tool holders).
  • C insert shape.
  • M tool type, straight shank with 50° side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0115098
  • Brand Seco
  • Model Number 00042505
  • Barcode Number 42505000000105
  • Net Weight (kg) 0.78
  • Designation MCMNN-16-4
  • Insert Seat Size Code (SSC) 1204
  • Insert Shape Code (SC) C
  • Cutting Diameter Internal Minimum 3 (mm) 160
  • Insert Size Inscribed Circle Diameter (mm) 4
  • Ramping Angle Maximum (RPMX) 4.4 deg
  • Functional Width (WF) mm 12.7
  • Cutting Edge Length (mm) 4
  • Inclination Angle (LAMS) -7.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) M
  • Tool Type M Type
  • Functional Length (LF) 152.4mm
  • Shank Length (LS) mm 121.9
  • Height Of Tool Holder Shank (H) mm 25.4
  • Tool Cutting Edge Angle (KAPR) 40.2 deg
  • Functional Height (HF) mm 25.4
  • Cutting Depth Maximum (cdx) mm 8.5
  • Connection Text Workpiece Side (ctws) CN1204
  • Shank Width (b) mm 25.4
  • Direction Of Cutting (hand) Right
  • Connection Text Machine Side (CTMS) 25.4
  • Rake Angle Axial (gamp) 0.0 deg
  • Rake Angle Orthogonal (gamo) 0.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Multiple Lock

Video

SKU: A0115098

Seco Turning External Toolholder Multiple Lock 152.4 x 12.7 x 4mm Right 40.2° C Insert Shape MCMNN-16-4

Multiple Lock - M Type - C Insert Shape

$158.40
RRP $198.00
SAVE $39.60 (20%)
