Specifications

AIMS SKU A0115100
Brand Seco
Model Number 00012574
Barcode Number 12574000000100
Net Weight (kg) 0.77
Designation MCRNL-16-4D
Insert Seat Size Code (SSC) 1204
Insert Shape Code (SC) C
Cutting Diameter Internal Minimum 3 (mm) 160
Insert Size Inscribed Circle Diameter (mm) 4
Ramping Angle Maximum (RPMX) 4.4 deg

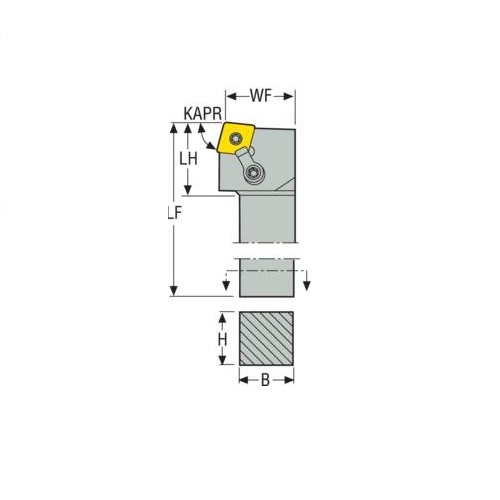

Functional Width (WF) mm 31.8
Cutting Edge Length (mm) 4
Inclination Angle (LAMS) -6.0 deg
Tool Cutting Edge Angle Code (KAPRC) R
Tool Type R Type
Functional Length (LF) 152.4mm
Shank Length (LS) mm 120.5
Height Of Tool Holder Shank (H) mm 25.4
Tool Cutting Edge Angle (KAPR) 75.0 deg
Functional Height (HF) mm 25.4
Cutting Depth Maximum (cdx) mm 1.5
Connection Text Workpiece Side (ctws) CN1204
Shank Width (b) mm 25.4
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 25.4
Rake Angle Axial (gamp) -6.0 deg
Rake Angle Orthogonal (gamo) -6.0 deg

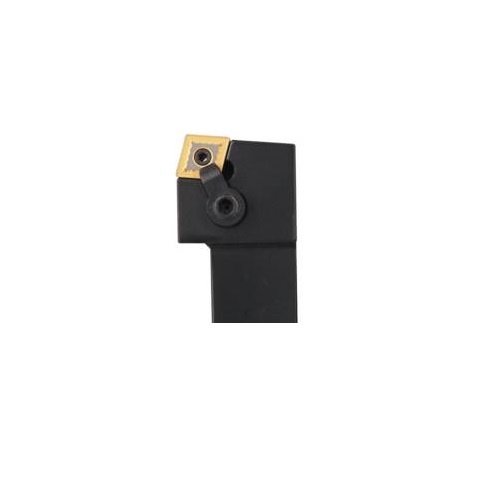

• Type Turning Toolholder
• Shank Type Square shank
• Version (internal/external/both) External
• Insert Clamping System (ICS) Multiple Lock
