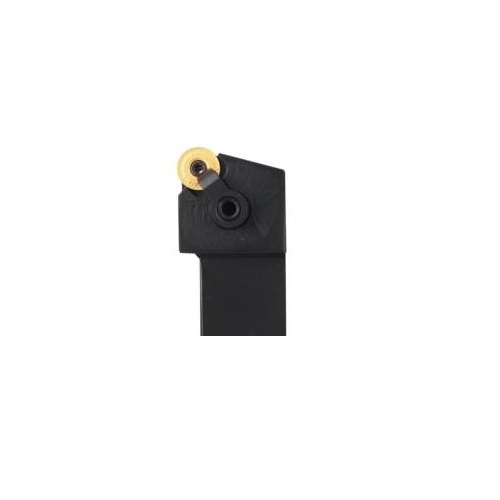

Seco Turning External Toolholder Multiple Lock Right 90° R Insert Shape MRGNR-12-4B

Turning External Toolholder (Multiple Lock - G Type - R Insert Shape)

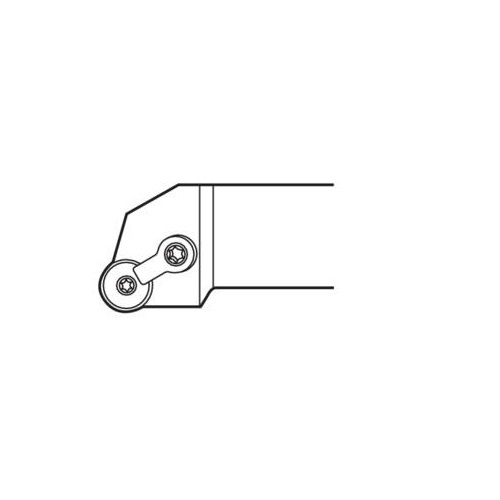

  • Multiple locks - multiple lock assembly, (Pin and clamp lock) / (M-Type tool holders).
  • R insert shape.
  • G tool type, offset shank with 0° side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0115108
  • Brand Seco
  • Model Number 00013087
  • Barcode Number 13087000000104
  • Net Weight (kg) 0.32
  • Designation MRGNR-12-4B
  • Insert Seat Size Code (SSC) 1204

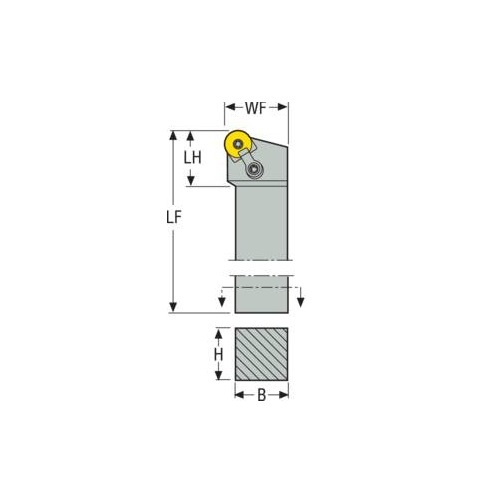

  • Functional Width (mm) 25.4
  • Insert Shape Code (SC) R
  • Cutting Diameter Internal Minimum 3 (mm) 200
  • Insert Size Inscribed Circle Diameter (mm) 4
  • Functional Width (WF) mm 25.4
  • Cutting Edge Length (mm) 4
  • Inclination Angle (LAMS) -6.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) G
  • Tool Type G Type
  • Functional Length (LF) 114.3mm
  • Shank Length (LS) mm 82.3
  • Height Of Tool Holder Shank (H) mm 19.1
  • Tool Cutting Edge Angle (KAPR) 90.0 deg
  • Functional Height (HF) mm 19.1
  • Cutting Depth Maximum (cdx) mm 1.8
  • Connection Text Workpiece Side (ctws) RN1204
  • Shank Width (b) mm 19.1
  • Direction Of Cutting (hand) Right
  • Connection Text Machine Side (CTMS) 19.05
  • Rake Angle Axial (gamp) -6.0 deg
  • Rake Angle Orthogonal (gamo) -6.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Multiple Lock
SKU: A0115108

Seco Turning External Toolholder Multiple Lock 114.3 x 25.4 x 4mm Right 90° R Insert Shape MRGNR-12-4B

Multiple Lock - G Type - R Insert Shape

$151.36
RRP $189.20
SAVE $37.84 (20%)
