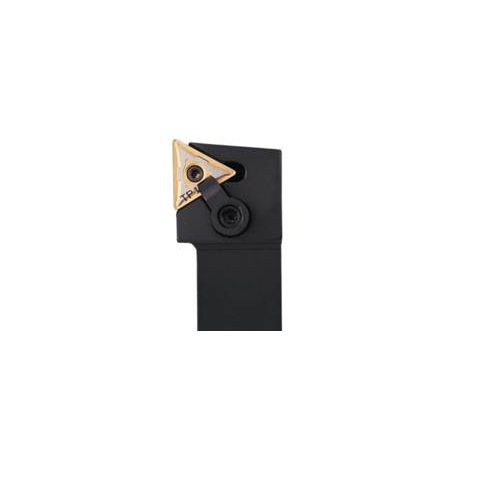

Seco Turning External Toolholder Multiple Lock Right 90° T Insert Shape MTGNR-10-3A

Turning External Toolholder (Multiple Lock - G Type - T Insert Shape)

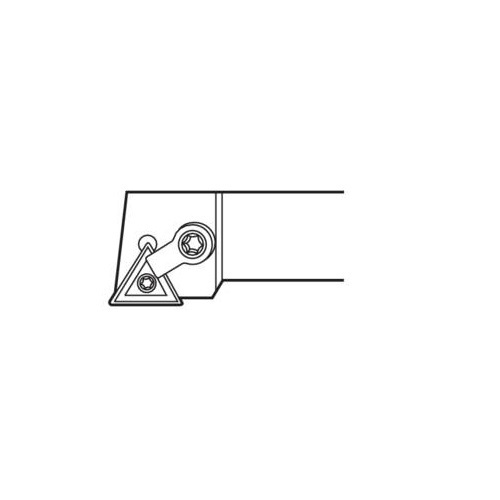

  • Multiple locks - multiple lock assembly, (Pin and clamp lock) / (M-Type tool holders).
  • T insert shape.
  • G tool type, offset shank with 0° side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

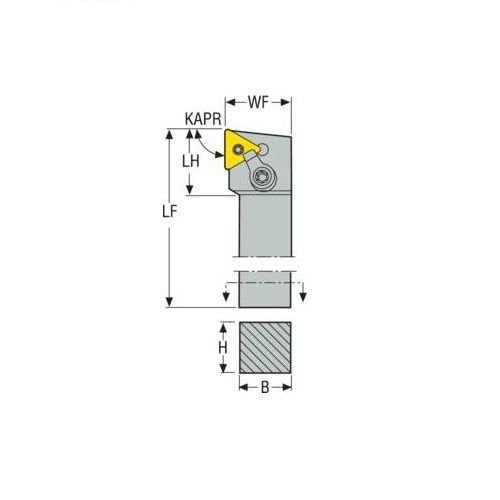

Specifications

  • AIMS SKU A0115156
  • Brand Seco
  • Model Number 00013167
  • Barcode Number 13167000000103
  • Net Weight (kg) 0.252
  • Designation MTGNR-10-3A
  • Shank Length (LS) mm 71.6
  • Functional Width (mm) 15.9
  • Insert Shape Code (SC) T
  • Cutting Diameter Internal Minimum 3 (mm) 180
  • Insert Size Inscribed Circle Diameter (mm) 3
  • Ramping Angle Maximum (RPMX) 5.0 deg
  • Functional Width (WF) mm 15.9
  • Cutting Edge Length (mm) 3
  • Inclination Angle (LAMS) -5.0 deg
  • Tool Type G Type
  • Functional Length (LF) 101.6mm
  • Insert Seat Size Code (SSC) 1604
  • Height Of Tool Holder Shank (H) mm 15.9
  • Tool Cutting Edge Angle (KAPR) 90.0 deg
  • Functional Height (HF) mm 15.9
  • Cutting Depth Maximum (cdx) mm 0.7
  • Connection Text Workpiece Side (ctws) TN1604
  • Shank Width (b) mm 15.9
  • Direction Of Cutting (hand) Right
  • Connection Text Machine Side (CTMS) 15.88
  • Rake Angle Axial (gamp) -6.0 deg
  • Rake Angle Orthogonal (gamo) -5.0 deg
  • Rake Angle Radial (gamf) -6.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Multiple Lock

Video

SKU: A0115156

Seco Turning External Toolholder Multiple Lock 101.6 x 15.9 x 3mm Right 90° T Insert Shape MTGNR-10-3A

Multiple Lock - G Type - T Insert Shape

$134.64
RRP $168.30
SAVE $33.66 (20%)
