Specifications

AIMS SKU A0115105
Brand Seco
Model Number 00012698
Barcode Number 12698000000103
Net Weight (kg) 0.8

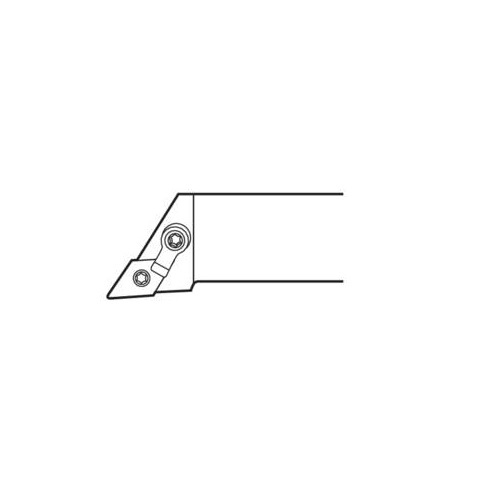

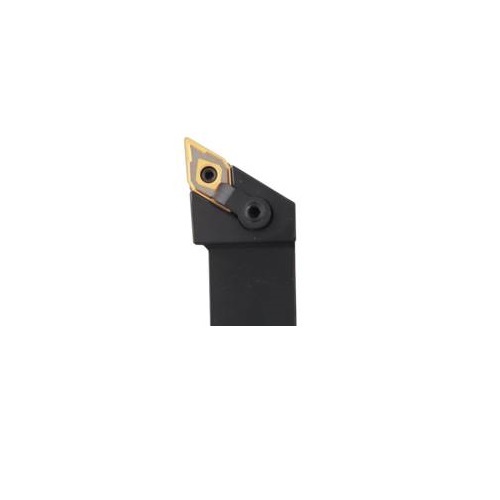

Designation MDJNR-16-4D
Shank Length (LS) mm 78.8
Functional Width (mm) 25.4
Insert Shape Code (SC) 0
Cutting Diameter Internal Minimum 3 (mm) 46
Insert Size Inscribed Circle Diameter (mm) 4
Ramping Angle Maximum (RPMX) 31.5 deg

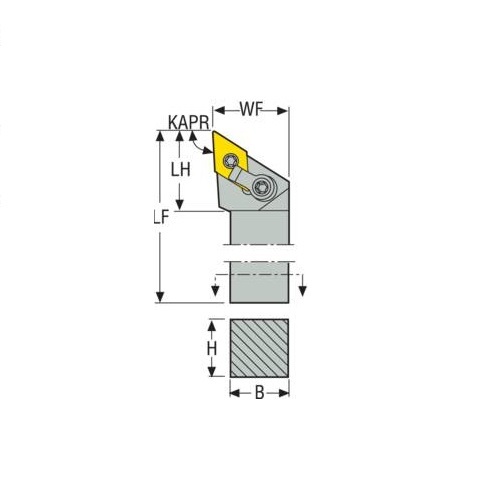

Functional Width (WF) mm 25.4
Cutting Edge Length (mm) 4
Inclination Angle (LAMS) -6.0 deg
Tool Type J Type
Functional Length (LF) 152.4mm
Height Of Tool Holder Shank (H) mm 19.1
Tool Cutting Edge Angle (KAPR) 93.0 deg
Functional Height (HF) mm 19.1
Cutting Depth Maximum (cdx) mm 6.1
Connection Text Workpiece Side (ctws) DN1504
Shank Width (b) mm 19.1
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 25.4
Rake Angle Axial (gamp) -6.0 deg
Rake Angle Orthogonal (gamo) -6.0 deg
Rake Angle Radial (gamf) -6.0 deg
• Type Turning Toolholder
• Shank Type Square shank
• Version (internal/external/both) External
• Insert Clamping System (ICS) Multiple Lock
