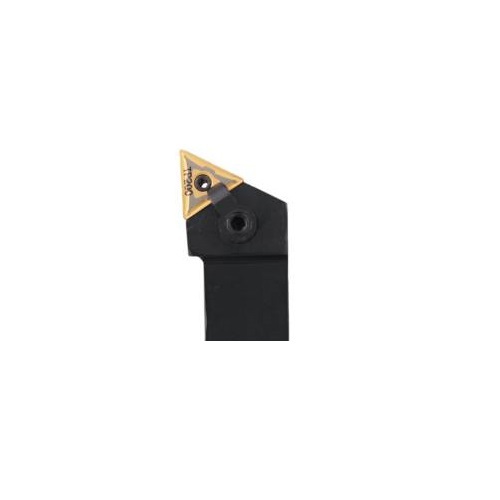

Seco Turning External Toolholder Multiple Lock Right 93° T Insert Shape MTJNRS-20-5

Turning External Toolholder (Multiple Lock - J Type - T Insert Shape)

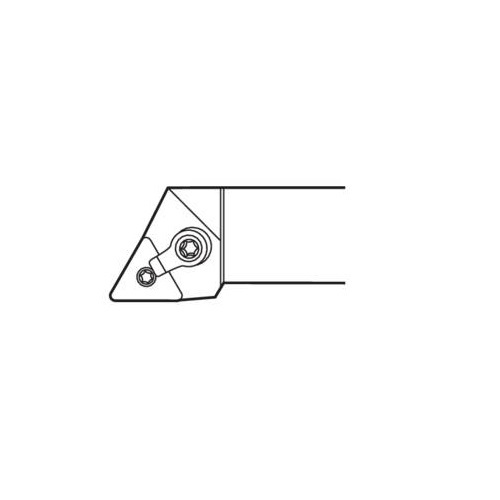

  • Multiple locks - multiple lock assembly, (Pin and clamp lock) / (M-Type tool holders).
  • T insert shape.
  • J tool type, offset shank with –3° side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0115161
  • Brand Seco
  • Model Number 00014450
  • Barcode Number 14450000000105
  • Net Weight (kg) 1.1
  • Designation MTJNRS-20-5

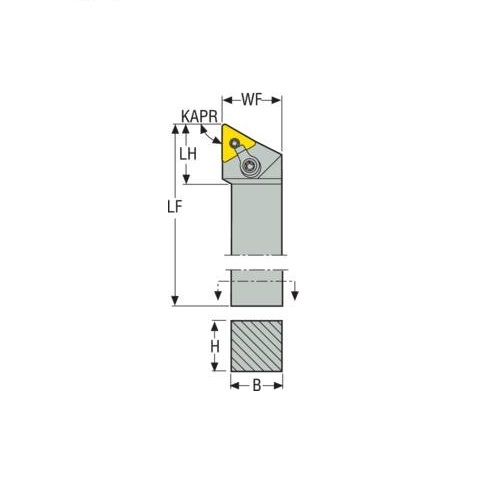

  • Functional Length (LF) 178mm
  • Functional Width (mm) 38.1
  • Insert Shape Code (SC) T
  • Insert Size Inscribed Circle Diameter (mm) 5
  • Functional Width (WF) mm 38.1
  • Cutting Edge Length (mm) 5
  • Inclination Angle (LAMS) -5.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) J
  • Tool Type J Type
  • Height Of Tool Holder Shank (H) mm 31.8
  • Tool Cutting Edge Angle (KAPR) 93.0 deg
  • Connection Text Workpiece Side (ctws) TN2706
  • Shank Width (b) mm 31.8
  • Direction Of Cutting (hand) Right
  • Connection Text Machine Side (CTMS) 31.75
  • Rake Angle Axial (gamp) -5.0 deg
  • Rake Angle Orthogonal (gamo) -5.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Multiple Lock

Video

SKU: A0115161

Seco Turning External Toolholder Multiple Lock 178 x 38.1 x 5mm Right 93° T Insert Shape MTJNRS-20-5

Multiple Lock - J Type - T Insert Shape

$213.84
RRP $267.30
SAVE $53.46 (20%)
