Specifications

AIMS SKU A0115095
Brand Seco
Model Number 00012668
Barcode Number 12668000000106
Net Weight (kg) 0.86

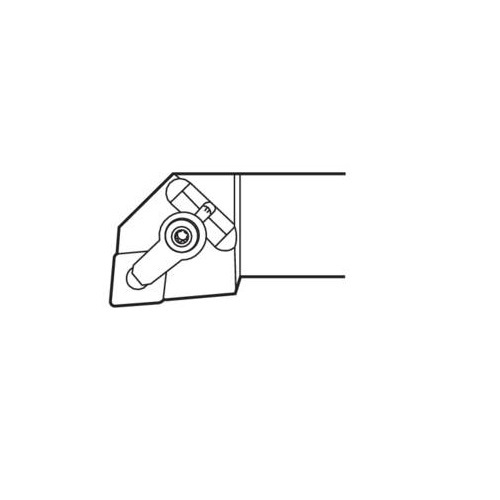

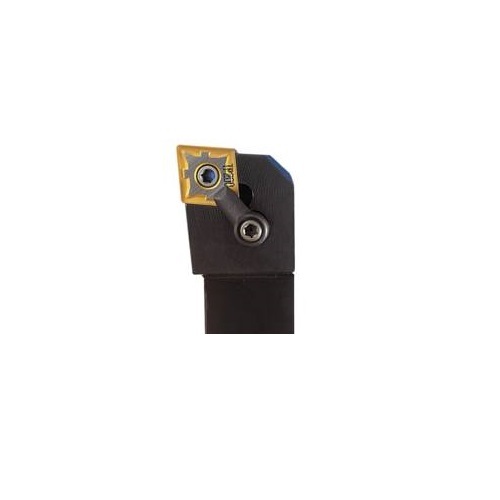

Designation MCLNR-16-6D
Shank Length (LS) mm 112.4
Functional Height (HF) mm 25.4
Shank Width (b) mm 25.4
Rake Angle Axial (gamp) -5.5 deg
Insert Size Inscribed Circle Diameter (mm) 6
Cutting Edge Length (mm) 6
Tool Type L Type
Height Of Tool Holder Shank (H) mm 25.4
Cutting Depth Maximum (cdx) mm 1.9
Direction Of Cutting (hand) Right
Rake Angle Orthogonal (gamo) -6.0 deg
Insert Shape Code (SC) C
Ramping Angle Maximum (RPMX) 5.0 deg
Inclination Angle (LAMS) -6.0 deg
Functional Length (LF) 152.4mm
Tool Cutting Edge Angle (KAPR) 95.0 deg
Connection Text Workpiece Side (ctws) CN1906
Connection Text Machine Side (CTMS) 25.4
Rake Angle Radial (gamf) -6.0 deg
Cutting Diameter Internal Minimum 3 (mm) 305
Functional Width (WF) mm 31.8
Tool Cutting Edge Angle Code (KAPRC) L
• Type Turning Toolholder
• Insert Clamping System (ICS) Multiple Lock
• Version (internal/external/both) External
• Shank Type Square shank
