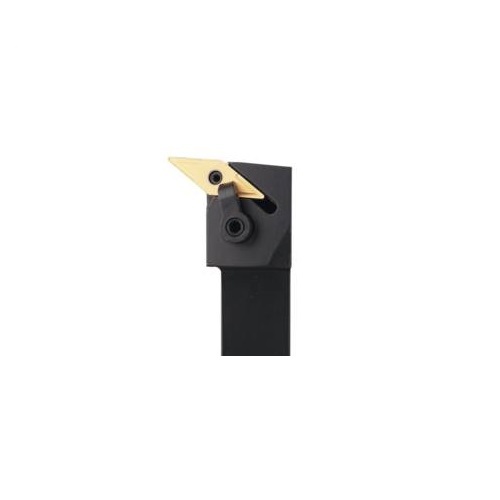

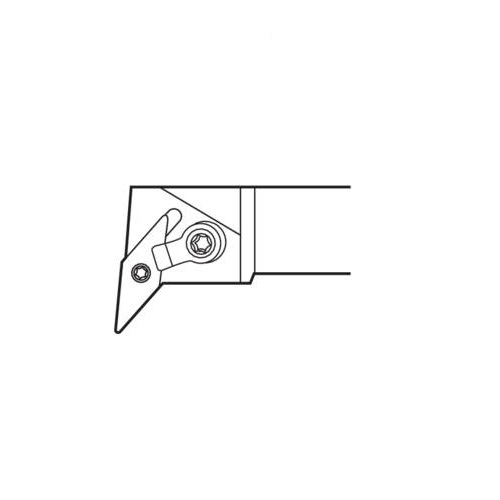

Seco Turning External Toolholder Multiple Lock Right 95° V Insert Shape MVLNR-16-4D

Turning External Toolholder (Multiple Lock - L Type - V Insert Shape)

  • Multiple locks - multiple lock assembly, (Pin and clamp lock) / (M-Type tool holders).
  • V insert shape.
  • L tool type, offset shank with –5° end or side cutting edge.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0115173
  • Brand Seco
  • Model Number 00013206
  • Barcode Number 13206000000109
  • Net Weight (kg) 0.92
  • Designation MVLNR-16-4D
  • Insert Seat Size Code (SSC) 2204

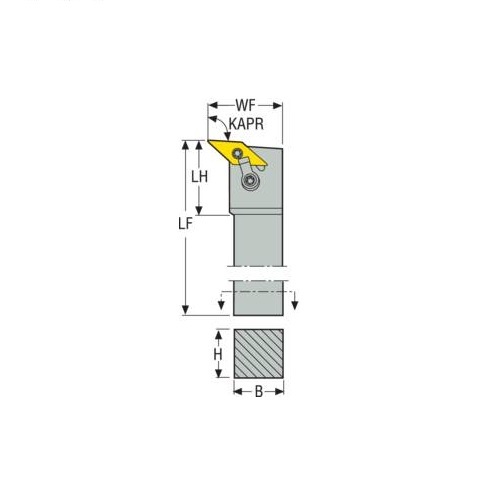

  • Functional Width (mm) 44.5
  • Insert Shape Code (SC) V
  • Cutting Diameter Internal Minimum 3 (mm) 300
  • Insert Size Inscribed Circle Diameter (mm) 4
  • Ramping Angle Maximum (RPMX) 51.1 deg
  • Functional Width (WF) mm 44.5
  • Cutting Edge Length (mm) 4
  • Inclination Angle (LAMS) -13.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) L
  • Tool Type L Type
  • Functional Length (LF) 152.4mm
  • Shank Length (LS) mm 114.4
  • Height Of Tool Holder Shank (H) mm 25.4
  • Tool Cutting Edge Angle (KAPR) 95.0 deg
  • Functional Height (HF) mm 25.4
  • Cutting Depth Maximum (cdx) mm 16.6
  • Connection Text Workpiece Side (ctws) VN2204
  • Shank Width (b) mm 25.4
  • Direction Of Cutting (hand) Right
  • Connection Text Machine Side (CTMS) 25.4
  • Rake Angle Axial (gamp) -4.0 deg
  • Rake Angle Orthogonal (gamo) -4.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Multiple Lock
