Description

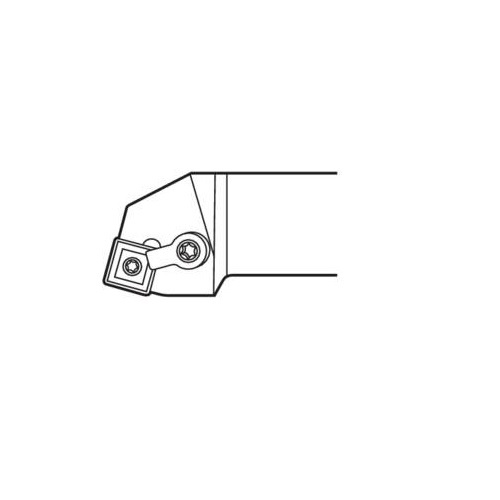

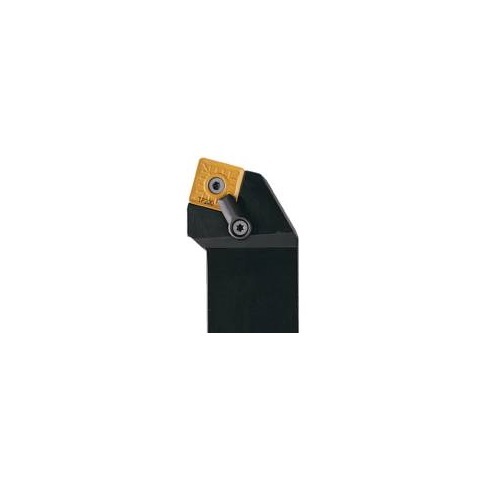

Seco Turning External Toolholder Multiple Lock Left 75° S Insert Shape MSRNL-24-6E

Turning External Toolholder (Multiple Lock - R Type - S Insert Shape)

Multiple locks - multiple lock assembly, (Pin and clamp lock) / (M-Type tool holders).
S insert shape.
R tool type, offset shank with 15° side cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0115133

Brand Seco

Model Number 00013114

Barcode Number 13114000000107

Net Weight (kg) 2.04

Designation MSRNL-24-6E

Insert Seat Size Code (SSC) 1906

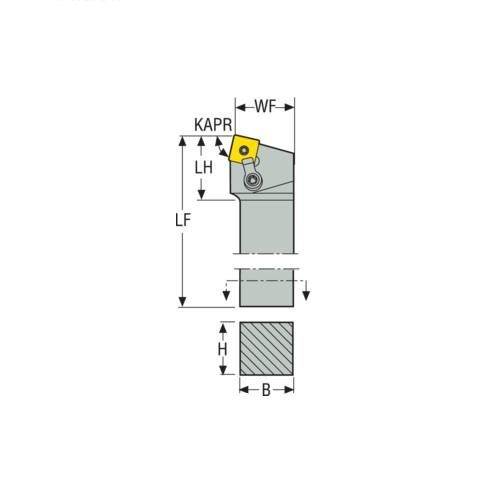

Functional Width (mm) 46.2

Insert Shape Code (SC) S

Cutting Diameter Internal Minimum 3 (mm) 180

Insert Size Inscribed Circle Diameter (mm) 6

Ramping Angle Maximum (RPMX) 45.0 deg

Functional Width (WF) mm 46.2

Cutting Edge Length (mm) 6

Inclination Angle (LAMS) -6.0 deg

Tool Cutting Edge Angle Code (KAPRC) R

Tool Type R Type

Functional Length (LF) 177.8mm

Shank Length (LS) mm 139.4

Height Of Tool Holder Shank (H) mm 38.1

Tool Cutting Edge Angle (KAPR) 75.0 deg

Functional Height (HF) mm 38.1

Cutting Depth Maximum (cdx) mm 5.1

Connection Text Workpiece Side (ctws) SN1906

Shank Width (b) mm 38.1

Direction Of Cutting (hand) Left

Connection Text Machine Side (CTMS) 38.1

Rake Angle Axial (gamp) -6.0 deg

Rake Angle Orthogonal (gamo) -6.0 deg

Rake Angle Radial (gamf) -6.0 deg

Type Turning Toolholder
Shank Type Square shank
Version (internal/external/both) External
Insert Clamping System (ICS) Multiple Lock
