Description

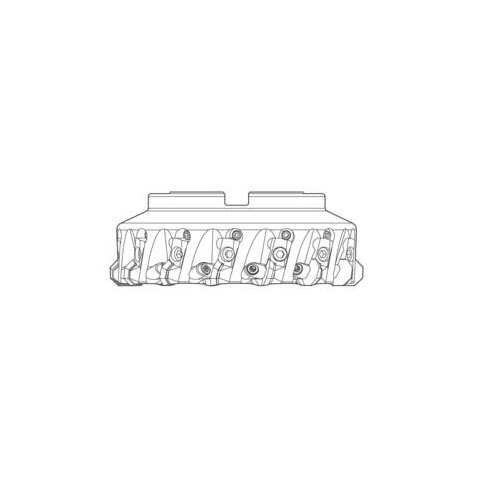

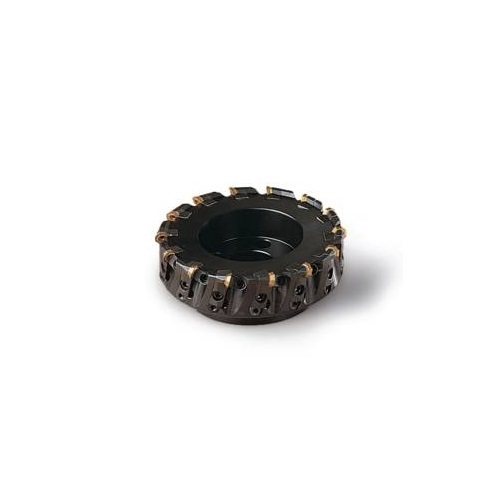

Seco Octomill Face Milling Cutter (Arbor)

Octomill Face Milling Cutter (Arbor - Close Pitch Cassettes)

Octomill has 8 cutting edges, single-sided inserts. (Insert not included).
Octomill face milling cutter for insert 05 is the perfect match for small machines up to 15HP, where small component/depth of cuts are used.

Octomill Face Milling Cutter (To be used with Insert 05)

___________________________________

About Octomill 05 and 07

Octomill™ 05 and 07 provide one of the most comprehensive ranges of face milling cutters on the market.
Designed to handle many applications, Octomill 05 and 07 offer high performance and process security.
These cutters excel in medium to rough machining in steel and stainless steel.
With eight edges, the cutters are more economical than traditional cutters due to a lower cost per cutting edge.

Specifications

AIMS SKU A0114264

Brand Seco

Model Number 00090989

Barcode Number 90989000000100

Net Weight (kg) 3.908

Designation R220.43-0125-05CT

Rake Angle Radial (gamf) 5.0 deg

Rake Angle Orthogonal (gamo) 15.0 deg

Rake Angle Axial (gamp) 15.0 deg

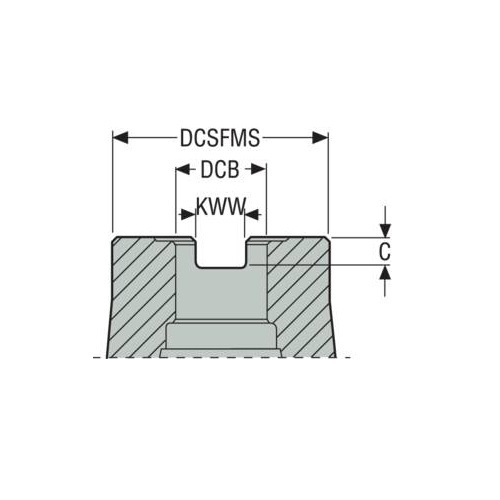

Keyway Width (KWW) mm 16.4

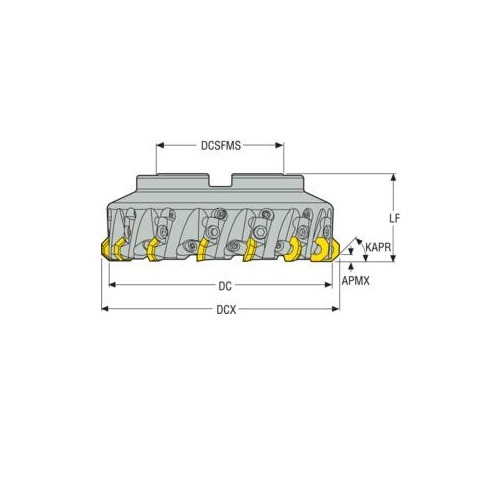

Functional Length (LF) mm 63

Cutting Diameter (DC) mm 125

Peripheral Effective Cutting Edge Count (ZEFP) 10

Cutting Dia Max (DCX) mm 134

Rotational Speed Maximum (rpmx) 3800 rpm

Contact Surface Diameter Machine Side (DCFMS) mm 90

Depth Of Cut Max In Feed Direction Side (APMXS) mm 3.5

Tool Cutting Edge Angle In Feed Direction Side 43.0 deg

Depth Of Key Way (C) mm 9

Connection Bore Diameter (DCB) mm 40

Type Face Milling Cutter
Shank Type Arbor
