Description

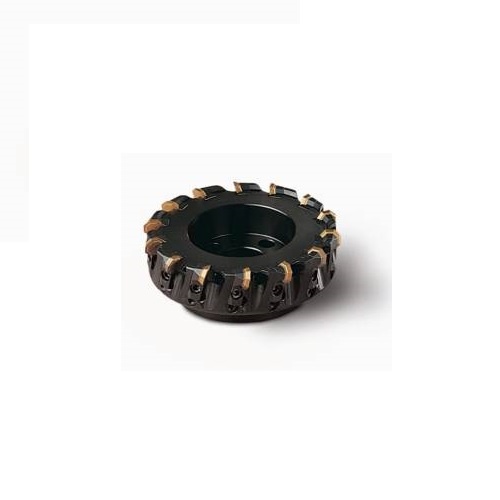

Octomill Face Milling Cutter (Arbor - Cassettes Close Pitch)

  • Octomill has 8 cutting edges, single-sided inserts. (Insert not included).
  • Octomill face milling cutter for insert 07 is ideal for medium sized machines in the 15HP to 25HP range.

Octomill Face Milling Cutter (To be used with Insert 07)

  • Cutter range 50-315 mm (2-5 inch).
  • Max depth of cut 5 mm (0.197 inch).
  • Recommended depth of cut 4 mm (0.157 inch).

___________________________________

About Octomill 05 and 07

  • Octomill™ 05 and 07 provide one of the most comprehensive ranges of face milling cutters on the market.
  • Designed to handle many applications, Octomill 05 and 07 offer high performance and process security.
  • These cutters excel in medium to rough machining in steel and stainless steel.
  • With eight edges, the cutters are more economical than traditional cutters due to a lower cost per cutting edge.

Specifications

  • AIMS SKU A0114293
  • Brand Seco
  • Model Number 75077250
  • Barcode Number 77250750000108
  • Net Weight (kg) 28
  • Designation R220.43-8315-07CT
  • Cutting Dia Max (DCX) mm 327
  • Diameter Bolt Circle 2 (mm) 177.8

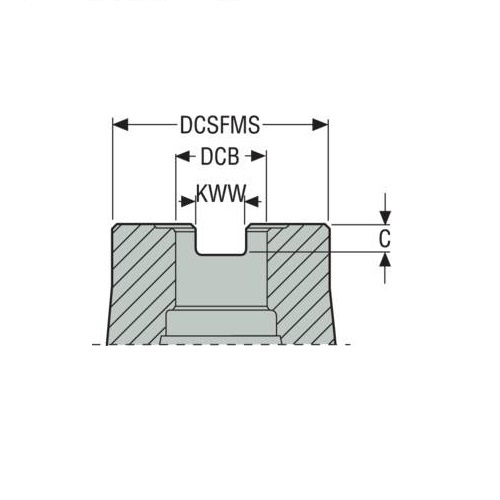

  • Connection Bore Diameter (DCB) mm 60
  • Depth Of Key Way (C) mm 14
  • Tool Cutting Edge Angle In Feed Direction Side 43.0 deg
  • Depth Of Cut Max In Feed Direction Side (APMXS) mm 5
  • Contact Surface Diameter Machine Side (DCFMS) mm 225
  • Rotational Speed Maximum (rpmx) 2400 rpm
  • Peripheral Effective Cutting Edge Count (ZEFP) 28
  • Cutting Diameter (DC) mm 315
  • Diameter Bolt Circle 1 (mm) 101.6
  • Functional Length (LF) mm 80
  • Keyway Width (KWW) mm 25.7
  • Rake Angle Axial (gamp) 15.0 deg
  • Rake Angle Orthogonal (gamo) 15.0 deg
  • Rake Angle Radial (gamf) 5.0 deg
  • Type Face Milling Cutter
  • Shank Type Arbor

Video

SKU: A0114293

Seco Octomill Face Milling Cutter (Arbor) 327 x 25.7mm 28 Teeth 2400rpm R220.43-8315-07CT

Octomill Face Milling Cutter - Suits 07

$6,344.80
RRP $7,931.00
SAVE $1,586.20 (20%)
