Seco Octomill Face Milling Cutter 07 (Arbor - Close Pitch) - SECO

Description

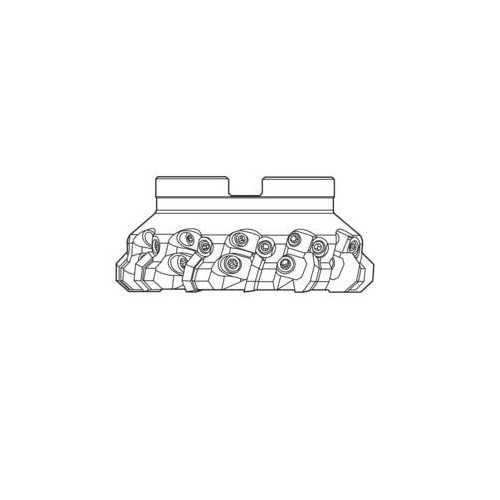

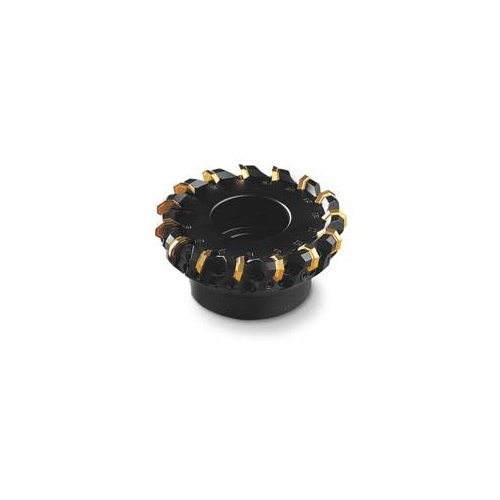

Octomill Face Milling Cutter (Arbor - Close Pitch)

Octomill has 8 cutting edges, single-sided inserts. (Insert not included).
Octomill face milling cutter for insert 07 is ideal for medium sized machines in the 15HP to 25HP range.

Octomill Face Milling Cutter (To be used with Insert 07)

Cutter range 50-315 mm (2-5 inch).
Max depth of cut 5 mm (0.197 inch).
Recommended depth of cut 4 mm (0.157 inch).

___________________________________

About Octomill 05 and 07

Octomill™ 05 and 07 provide one of the most comprehensive ranges of face milling cutters on the market.
Designed to handle many applications, Octomill 05 and 07 offer high performance and process security.
These cutters excel in medium to rough machining in steel and stainless steel.
With eight edges, the cutters are more economical than traditional cutters due to a lower cost per cutting edge.

Specifications

AIMS SKU A0114286

Brand Seco

Model Number 00004368

Barcode Number 4368000000106

Net Weight (kg) 0.722

Designation R220.43-0063-07-6T

Rake Angle Radial (gamf) 5.0 deg

Rake Angle Orthogonal (gamo) 15.0 deg

Rake Angle Axial (gamp) 15.0 deg

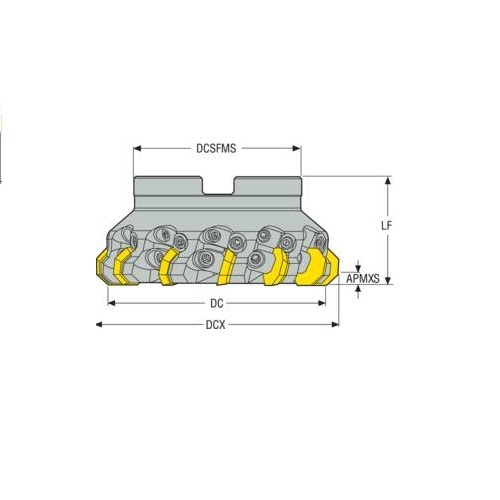

Keyway Width (KWW) mm 10.4

Functional Length (LF) mm 50

Cutting Diameter (DC) mm 63

Peripheral Effective Cutting Edge Count (ZEFP) 6

Cutting Dia Max (DCX) mm 75

Rotational Speed Maximum (rpmx) 5600 rpm

Contact Surface Diameter Machine Side (DCFMS) mm 47

Depth Of Cut Max In Feed Direction Side (APMXS) mm 5

Tool Cutting Edge Angle In Feed Direction Side 43.0 deg

Depth Of Key Way (C) mm 6.3

Connection Bore Diameter (DCB) mm 22

Type Face Milling Cutter
Shank Type Arbor
