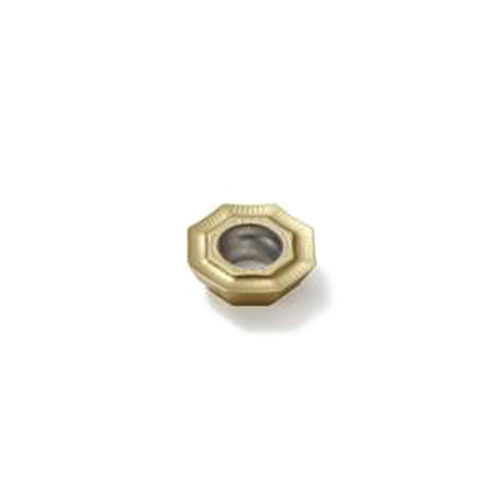

Seco Octomill Face Milling Insert Size 05 3.77 x 12.7 x 12.7mm Neutral Grade T25M X Type ME07 Designation OFEX05T305TN-ME07,T25M Pack of 10

Octomill Insert Size 05 Grade T25M X Type (OFEX05T3-ME07)

• Medium machining condition.
• OFEX05T3 Insert Seat Size Code (SSC).
• X type.

T25M Grade

• Carbide CVD.
• CVD-coated grades are suitable for wear resistance in demanding applications with high feed rates and intermediate to high cutting speed.

About Seco Octomill Insert Size 05

• Cutter range 32-315 mm (1.25-5 inch).
• Max depth of cut 3.5 mm (0.138 inches).
• Recommended depth of cut 2.5 mm (0.098 inch).
• 8 cutting edges, single-sided inserts.
