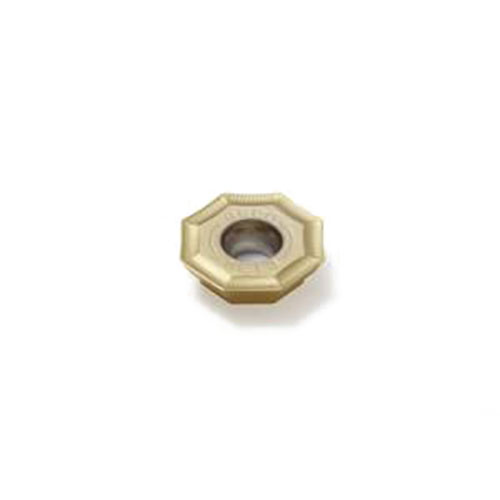

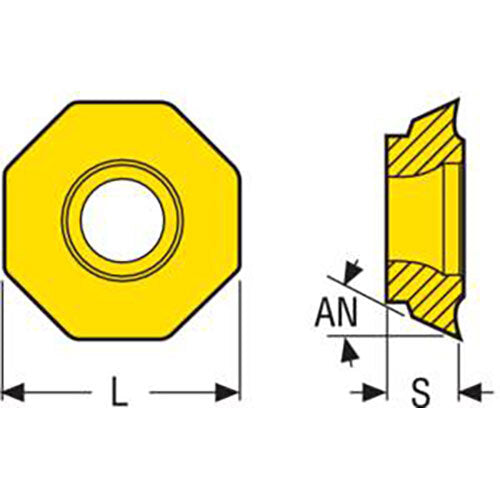

Seco Octomill Face Milling Insert Size 05 4.76 x 13.3 x 13.3mm Right Grade F40M T Type ME12 Designation OFMT050405TR-ME12,F40M Pack of 10

Octomill Insert Size 05 Grade F40M T Type (OFMT05-ME12)

• Medium machining condition.
• OFMT05 Insert Seat Size Code (SSC).
• T type.

F40M Grade

• PVD-coated grade for fine to medium rough milling.
• First choice for milling with small feeds and/or low cutting speeds.
• Excellent for milling when there is a risk of vibrations and when coolant is used. Recommended for machining superalloys.
• (Ti, Al) N – TiN.

About Seco Octomill Insert Size 05

• Cutter range 32-315 mm (1.25-5 inch).
• Max depth of cut 3.5 mm (0.138 inches).
• Recommended depth of cut 2.5 mm (0.098 inch).
• 8 cutting edges, single-sided inserts.
