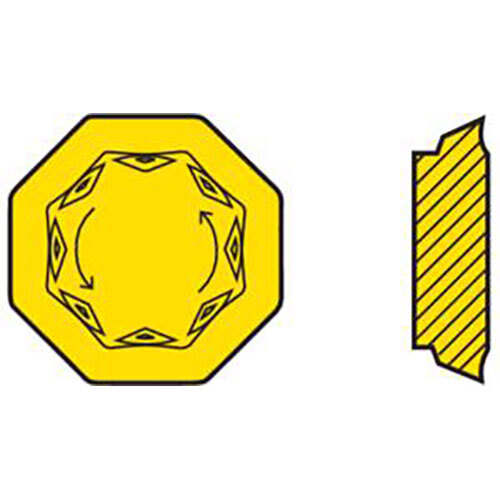

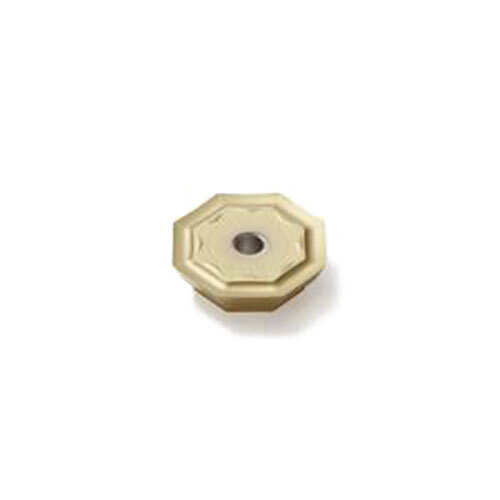

Seco Octomill Face Milling Insert Size 07 4.56 x 17.94 x 17.94mm Neutral Grade F15M R Type E07 Designation OFER070405N-E07,F15M Pack of 10

Description

Seco Octomill Face Milling Insert Size 07 4.56 x 17.94 x 17.94mm Neutral Grade F15M R Type E07 Designation OFER070405N-E07,F15M Pack of 10

Octomill Insert Size 07 Grade F15M R Type (OFER0704-E07)

Easy machining conditions, sharp insert cutting edge.
OFER0704 Insert Seat Size Code (SSC).
R type.

F15M Grade

The hard and wear-resistant grade for milling in aluminum and non-ferrous alloys.
Excellent grade, in combination with protected cutting edges, for high-speed machining in hardened steel.
(Ti, Al) N – TiN.

About Seco Octomill Insert Size 07

Cutter range 50-315 mm (2-5 inches).
Max depth of cut 5 mm (0.197 inch)
Recommended depth of cut 4 mm (0.157 inch).
8 cutting edges, single-sided inserts.

Specifications

AIMS SKU A0121680

Brand Seco

Model Number 74068306

Barcode Number 68306740001005

Designation OFER070405N-E07,F15M

Grade Type Carbide PVD

Cutting Edge Count (CEDC) 8

Insert Hand (IH) Both

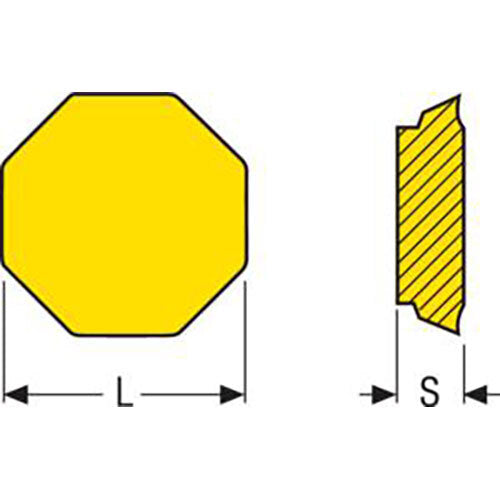

Insert Thickness (S) mm 4.56

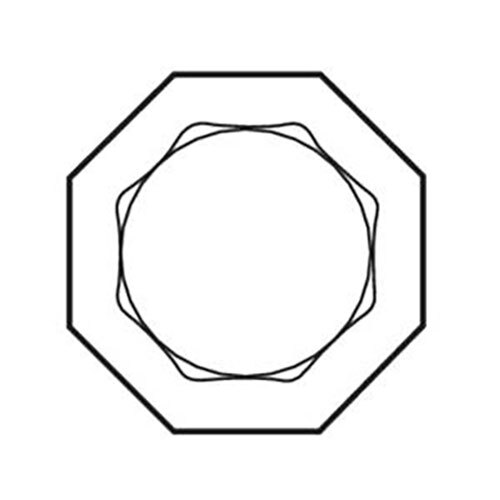

Insert Seat Size Code (SSC) OFER0704..

Inscribed Circle Diameter (IC) mm 17.94

Clearance Angle Major (an) Deg 26.0 deg

Theoretical Cutting Edge Length (L) mm 17.94

Wiper Edge Length (bs) Mm 1.5
