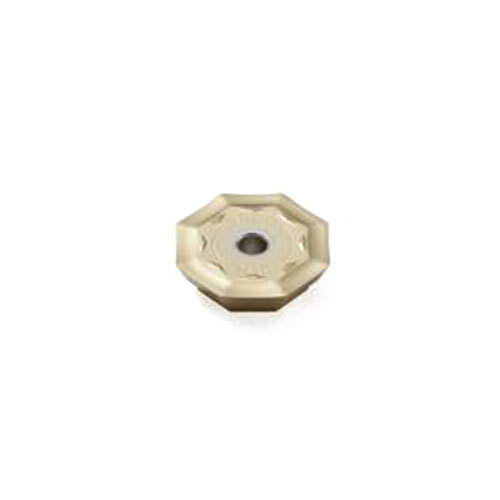

Seco Octomill Face Milling Insert Size 07 4.56 x 17.94 x 17.94mm Neutral Grade F30M R Type M10 Designation OFER070405N-M10,F30M Pack of 10

Description

Seco Octomill Face Milling Insert Size 07 4.56 x 17.94 x 17.94mm Neutral Grade F30M R Type M10 Designation OFER070405N-M10,F30M Pack of 10

Octomill Insert Size 07 Grade F30M R Type (OFER0704-M10)

Medium machining condition.
OFER0704 Insert Seat Size Code (SSC).
R type.

F30M Grade

Basic grade for Minimaster inserts and thread milling inserts.
Also suitable for milling stainless steel, hardened steel, and superalloys.
(Ti, Al) N – TiN.

About Seco Octomill Insert Size 07

Cutter range 50-315 mm (2-5 inches).
Max depth of cut 5 mm (0.197 inch)
Recommended depth of cut 4 mm (0.157 inch).
8 cutting edges, single-sided inserts.

Specifications

AIMS SKU A0121681

Brand Seco

Model Number 74068311

Barcode Number 68311740001009

Designation OFER070405N-M10,F30M

Grade Type Carbide PVD

Cutting Edge Count (CEDC) 8

Insert Hand (IH) Both

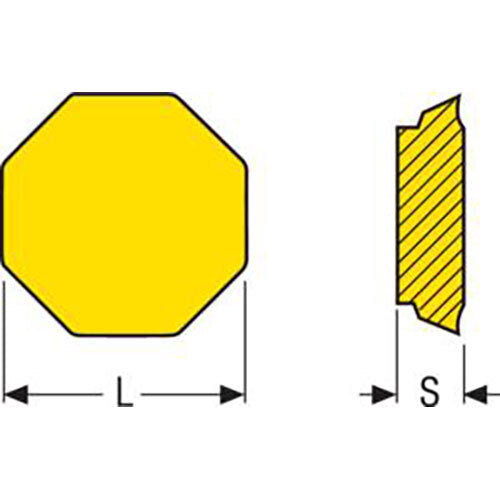

Insert Thickness (S) mm 4.56

Insert Seat Size Code (SSC) OFER0704..

Inscribed Circle Diameter (IC) mm 17.94

Clearance Angle Major (an) Deg 26.0 deg

Theoretical Cutting Edge Length (L) mm 17.94

Wiper Edge Length (bs) Mm 1.5
