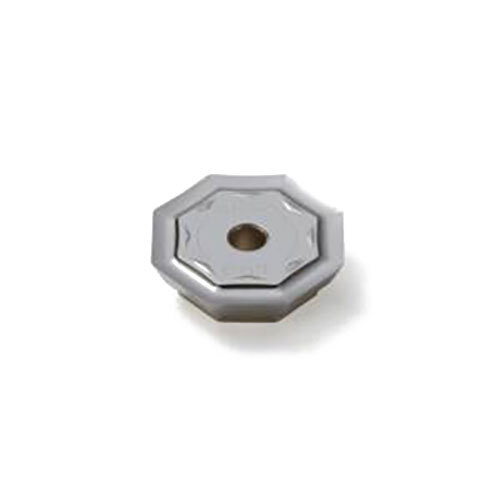

Seco Octomill Face Milling Insert Size 07 4.56 x 17.94 x 17.94mm Neutral Grade H15 R Type E07 Designation OFER070405N-E07,H15 Pack of 10

Description

Seco Octomill Face Milling Insert Size 07 4.56 x 17.94 x 17.94mm Neutral Grade H15 R Type E07 Designation OFER070405N-E07,H15 Pack of 10

Octomill Insert Size 07 Grade H15 R Type (OFER0704-E07)

Easy machining condition, sharp insert cutting edge.
OFER0704 Insert Seat Size Code (SSC).
R type.

H15 Grade

Hard, wear-resistant grade for milling in aluminum.
Uncoated grade.

About Seco Octomill Insert Size 05

About Seco Octomill Insert Size 07

Cutter range 50-315 mm (2-5 inches).
Max depth of cut 5 mm (0.197 inch)
Recommended depth of cut 4 mm (0.157 inch).

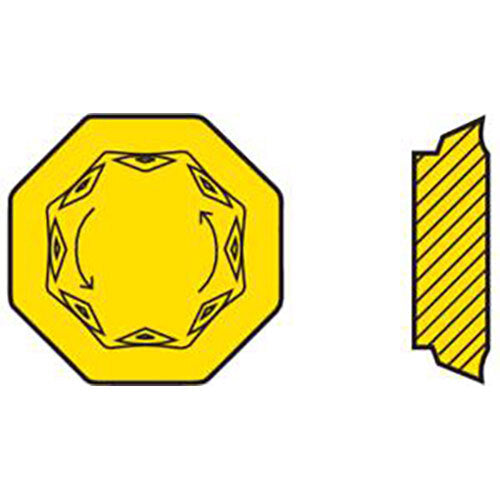

8 cutting edges, single-sided inserts.

Specifications

AIMS SKU A0121683

Brand Seco

Model Number 02409192

Barcode Number 9192024001000

Designation OFER070405N-E07,H15

Grade Type Carbide Uncoated

Cutting Edge Count (CEDC) 8

Insert Hand (IH) Both

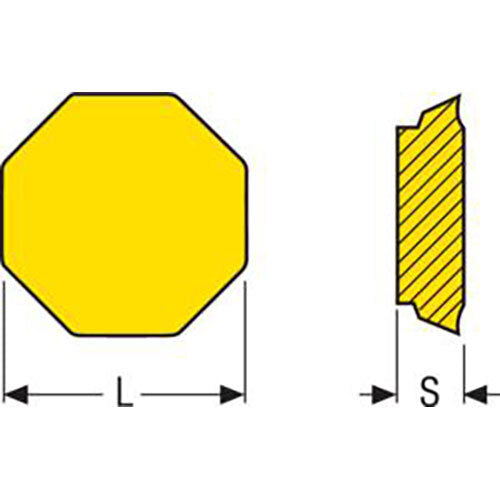

Insert Thickness (S) mm 4.56

Insert Seat Size Code (SSC) OFER0704..

Inscribed Circle Diameter (IC) mm 17.94

Clearance Angle Major (an) Deg 26.0 deg

Theoretical Cutting Edge Length (L) mm 17.94

Wiper Edge Length (bs) Mm 1.5
