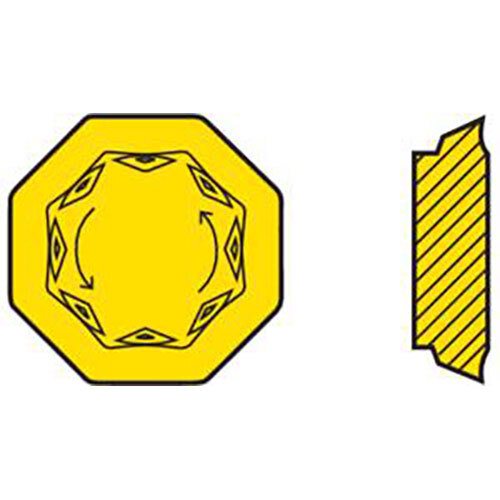

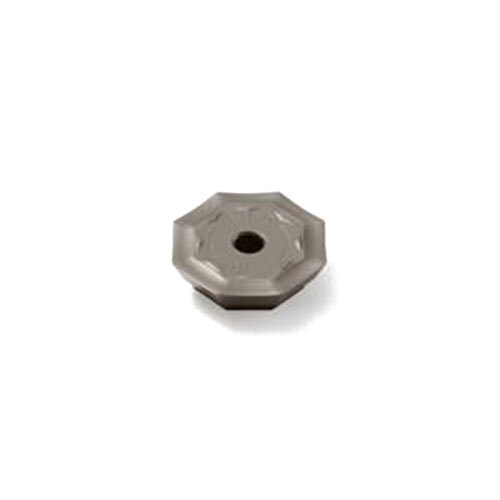

Seco Octomill Face Milling Insert Size 07 4.56 x 17.94 x 17.94mm Neutral Grade MK2050 R Type M16 Designation OFER070405TN-M16,MK2050 Pack of 10

Octomill Insert Size 07 Grade MK2050 R Type (OFER0704-M16)

  • Difficult machining conditions, strong insert cutting edge.

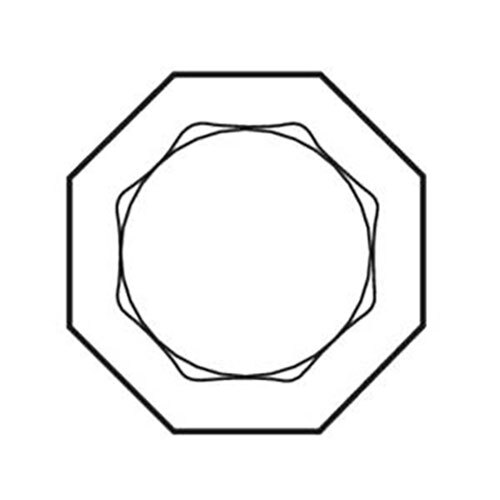

  • OFER0704 Insert Seat Size Code (SSC).
  • R type.

MK2050 Grade

  • PVD-coated grade for cast iron, Improved edge integrity.
  • First choice in all cast iron materials.
  • Excellent for milling with and without coolant.
  • (Ti, Si)N/(Ti, Al)N.

About Seco Octomill Insert Size 07

  • Cutter range 50-315 mm (2-5 inches).
  • Max depth of cut 5 mm (0.197 inch)
  • Recommended depth of cut 4 mm (0.157 inch).
  • 8 cutting edges, single-sided inserts.

Specifications

  • AIMS SKU A0121684
  • Brand Seco
  • Model Number 02827997
  • Barcode Number 27997028001003
  • Designation OFER070405TN-M16,MK2050
  • Grade Type Carbide PVD
  • Cutting Edge Count (CEDC) 8
  • Insert Hand (IH) Both

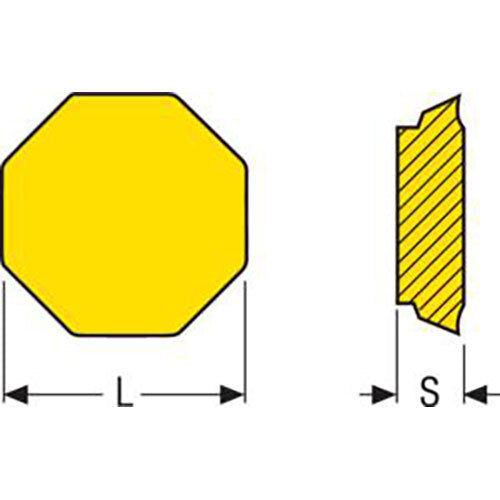

  • Insert Thickness (S) mm 4.56
  • Corner Radius (RE) mm 0.5
  • Insert Seat Size Code (SSC) OFER0704..
  • Inscribed Circle Diameter (IC) mm 17.94
  • Clearance Angle Major (an) Deg 26.0 deg
  • Theoretical Cutting Edge Length (L) mm 17.94
  • Wiper Edge Length (bs) Mm 1.5

Video

SKU: A0121684

Seco Octomill Face Milling Insert Size 07 4.56 x 17.94 x 17.94mm Neutral Grade MK2050 R Type M16 Designation OFER070405TN-M16,MK2050 Pack of 10

Octomill Insert Size 07 Grade MK2050 R Type (OFER0704-M1

$408.98
