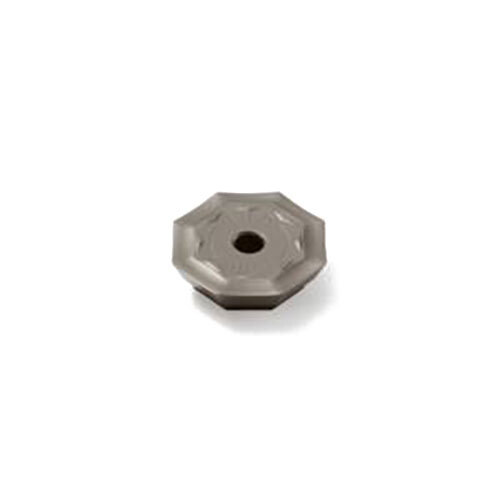

Seco Octomill Face Milling Insert Size 07 4.56 x 17.94 x 17.94mm Neutral Grade MK1500 R Type M16 Designation OFER070405TN-M16,MK1500 Pack of 10

Description

Seco Octomill Face Milling Insert Size 07 4.56 x 17.94 x 17.94mm Neutral Grade MK1500 R Type M16 Designation OFER070405TN-M16,MK1500 Pack of 10

Octomill Insert Size 07 Grade MK1500 R Type (OFER0704-M16)

Medium machining condition.
OFER0704 Insert Seat Size Code (SSC).
R type.

MK1500 Grade

CVD-coated grade based on Duratomic coating. Basic grade for milling cast iron and nodular cast iron, with or without coolant.
Ti (C, N) – Al2O3.

About Seco Octomill Insert Size 07

Cutter range 50-315 mm (2-5 inches).
Max depth of cut 5 mm (0.197 inch)
Recommended depth of cut 4 mm (0.157 inch).
8 cutting edges, single-sided inserts.

Specifications

AIMS SKU A0121686

Brand Seco

Model Number 02566035

Barcode Number 66035025001004

Designation OFER070405TN-M16,MK1500

Grade Type Carbide CVD

Cutting Edge Count (CEDC) 8

Insert Hand (IH) Both

Insert Thickness (S) mm 4.56

Insert Seat Size Code (SSC) OFER0704..

Inscribed Circle Diameter (IC) mm 17.94

Clearance Angle Major (an) Deg 26.0 deg

Theoretical Cutting Edge Length (L) mm 17.94

Wiper Edge Length (bs) Mm 1.5
