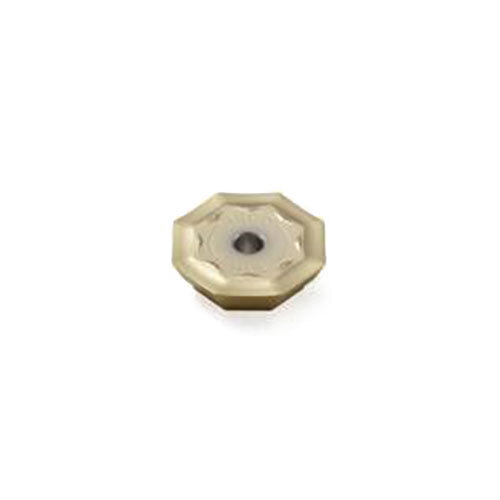

Seco Octomill Face Milling Insert Size 07 4.56 x 17.94 x 17.94mm Neutral Grade T25M R Type M16 Designation OFER070405TN-M16,T25M Pack of 10

Description

Seco Octomill Face Milling Insert Size 07 4.56 x 17.94 x 17.94mm Neutral Grade T25M R Type M16 Designation OFER070405TN-M16,T25M Pack of 10

Octomill Insert Size 07 Grade T25M R Type (OFER0704-M16)

Medium machining condition.
OFER0704 Insert Seat Size Code (SSC).
R type.

T25M Grade

Carbide CVD.
CVD-coated grades are suitable for wear resistance in demanding applications with high feed rates and intermediate to high cutting speed.

About Seco Octomill Insert Size 05

Cutter range 50-315 mm (2-5 inches).
Max depth of cut 5 mm (0.197 inch)
Recommended depth of cut 4 mm (0.157 inch).

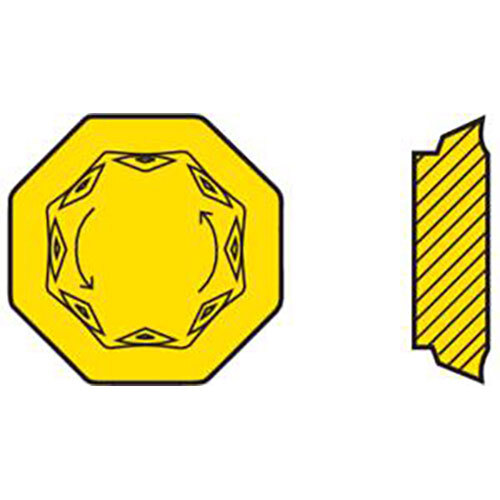

8 cutting edges, single-sided inserts.

Specifications

AIMS SKU A0121689

Brand Seco

Model Number 74068307

Barcode Number 68307740001002

Designation OFER070405TN-M16,T25M

Grade Type Carbide CVD

Cutting Edge Count (CEDC) 8

Insert Hand (IH) Both

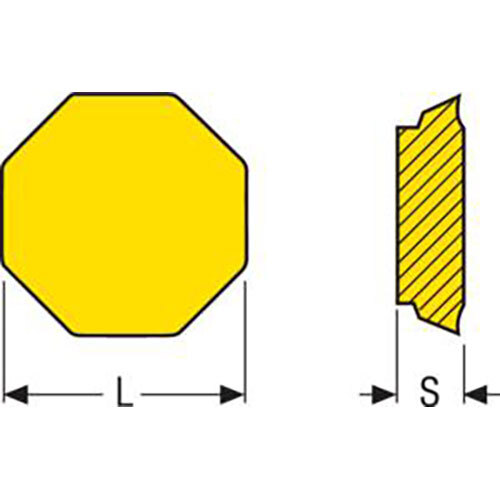

Insert Thickness (S) mm 4.56

Corner Radius (RE) mm 0.5

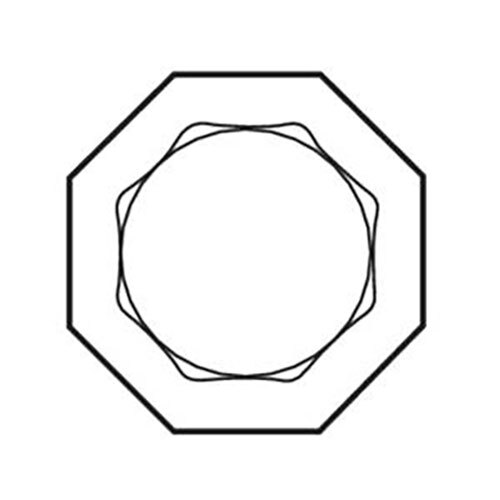

Insert Seat Size Code (SSC) OFER0704..

Inscribed Circle Diameter (IC) mm 17.94

Clearance Angle Major (an) Deg 26.0 deg

Theoretical Cutting Edge Length (L) mm 17.94

Wiper Edge Length (bs) Mm 1.5
