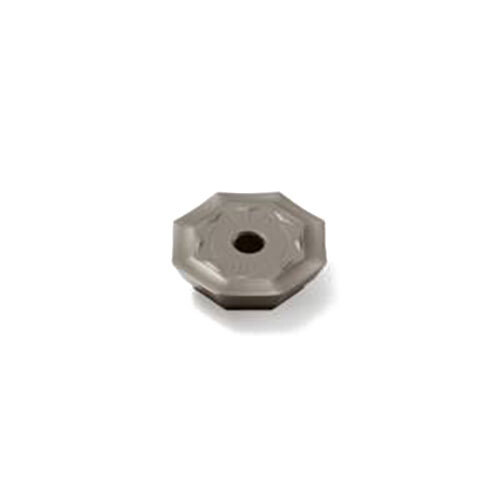

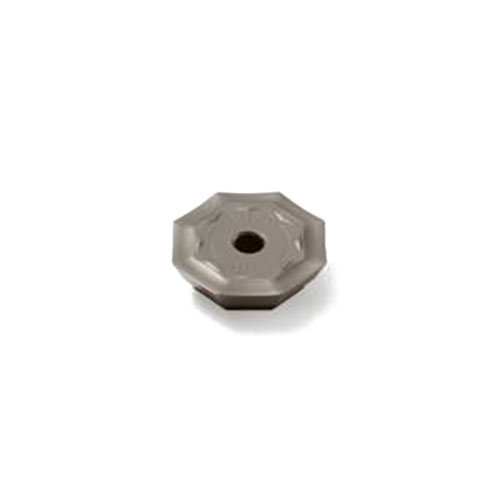

Seco Octomill Face Milling Insert Size 07 4.56 x 17.94 x 17.94mm Neutral Grade T350M R Type M16 Designation OFER070405TN-M16,T350M Pack of 10

Description

Seco Octomill Face Milling Insert Size 07 4.56 x 17.94 x 17.94mm Neutral Grade T350M R Type M16 Designation OFER070405TN-M16,T350M Pack of 10

Octomill Insert Size 07 Grade T350M R Type (OFER0704-M16)

Medium machining condition.
OFER0704 Insert Seat Size Code (SSC).
R type.

T350M Grade

CVD-coated grade as a basic choice for difficult stainless steel and an alternative in difficult operations in steel.
Ti (C, N) – Al2O3.

About Seco Octomill Insert Size 07

Cutter range 50-315 mm (2-5 inches).
Max depth of cut 5 mm (0.197 inch)
Recommended depth of cut 4 mm (0.157 inch).
8 cutting edges, single-sided inserts.

Specifications

AIMS SKU A0121691

Brand Seco

Model Number 00039978

Barcode Number 39978000001001

Designation OFER070405TN-M16,T350M

Grade Type Carbide CVD

Cutting Edge Count (CEDC) 8

Insert Hand (IH) Both

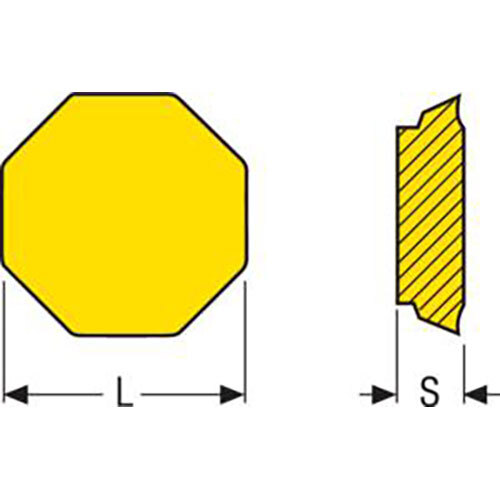

Insert Thickness (S) mm 4.56

Insert Seat Size Code (SSC) OFER0704..

Inscribed Circle Diameter (IC) mm 17.94

Clearance Angle Major (an) Deg 26.0 deg

Theoretical Cutting Edge Length (L) mm 17.94

Wiper Edge Length (bs) Mm 1.5
