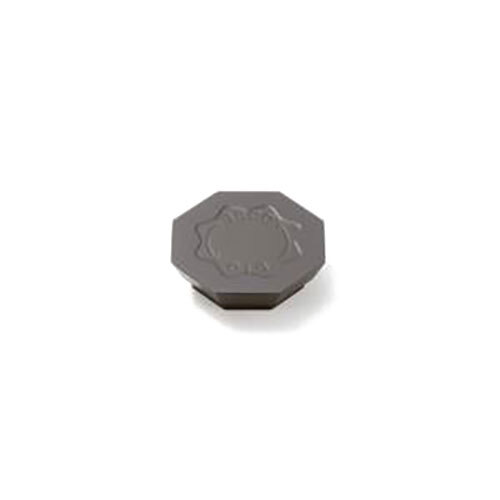

Seco Octomill Face Milling Insert Size 07 4.76 x 17.96 x 17.96mm Neutral Grade MK1500 N Type D18 Designation OFEN070405TN-D18,MK1500 Pack of 10

Description

Seco Octomill Face Milling Insert Size 07 4.76 x 17.96 x 17.96mm Neutral Grade MK1500 N Type D18 Designation OFEN070405TN-D18,MK1500 Pack of 10

Octomill Insert Size 07 Grade MK1500 N Type (OFEN07)

Difficult machining conditions, strong insert cutting edge.
OFEN07 Insert Seat Size Code (SSC).
N type.

MK1500 Grade

CVD-coated grade based on Duratomic coating. Basic grade for milling cast iron and nodular cast iron, with or without coolant.
Ti (C, N) – Al2O3.

About Seco Octomill Insert Size 07

Cutter range 50-315 mm (2-5 inches).
Max depth of cut 5 mm (0.197 inch)
Recommended depth of cut 4 mm (0.157 inch).

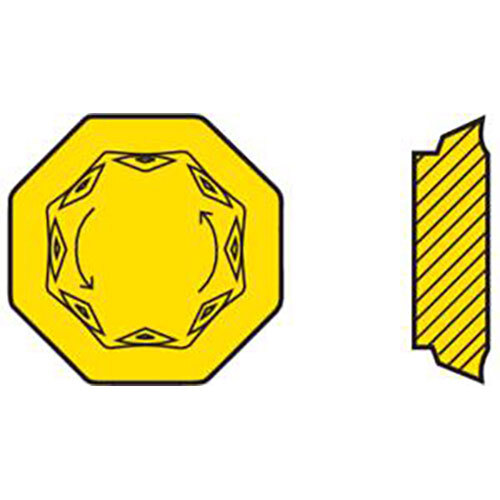

8 cutting edges, single-sided inserts.

Specifications

AIMS SKU A0121697

Brand Seco

Model Number 02566028

Barcode Number 66028025001006

Designation OFEN070405TN-D18,MK1500

Grade Type Carbide CVD

Cutting Edge Count (CEDC) 8

Insert Hand (IH) Both

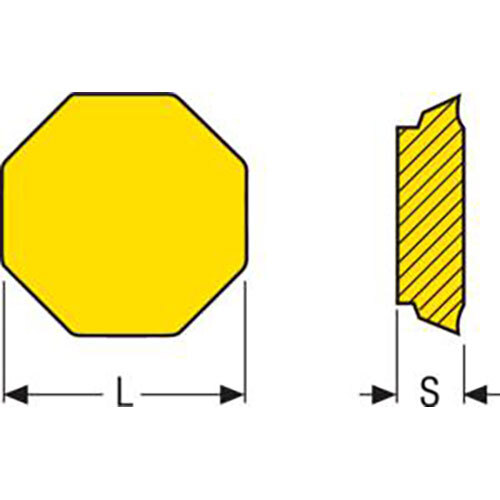

Insert Thickness (S) mm 4.76

Corner Radius (RE) mm 0.5

Insert Seat Size Code (SSC) OFEN07..

Inscribed Circle Diameter (IC) mm 17.96

Clearance Angle Major (an) Deg 26.0 deg

Theoretical Cutting Edge Length (L) mm 17.96

Wiper Edge Length (bs) Mm 1.5
